AM/FM/Cassette/MP3 (M455) Audio Unit Connector End View

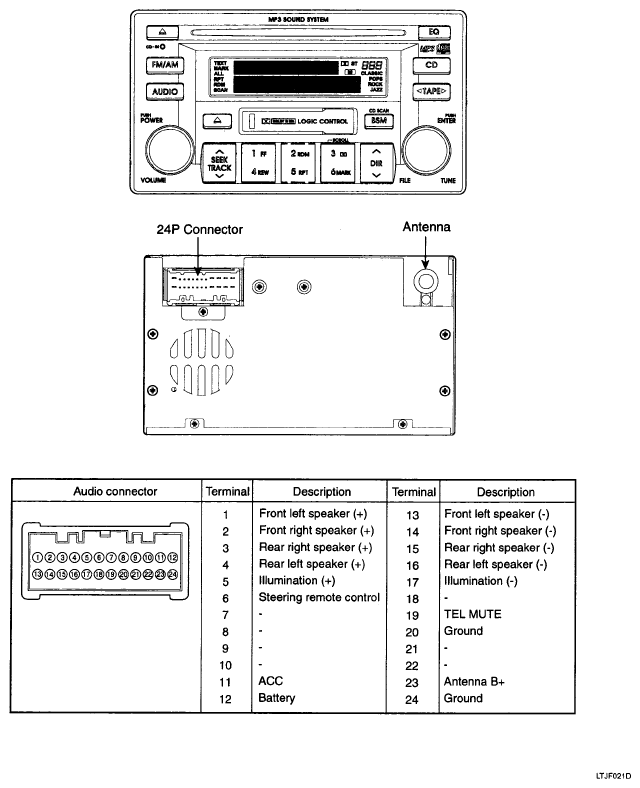

Fig 1: AM/FM/Cassette/MP3 (M455) Audio Unit Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
