Monitor Scan Tool Data

Ignition "ON" & Engine "OFF".
Connect Scan tool and clear the DTCs.
If the DTCs are retrieved again, monitor "CURRENT DATA" to check No. of Learnt key, ECM and KEY status.

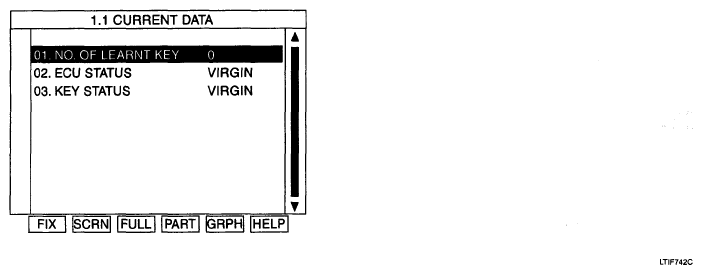

Fig 1: Scan Tool Display - ECU Status Virgin
Courtesy of KIA MOTORS AMERICA, INC.

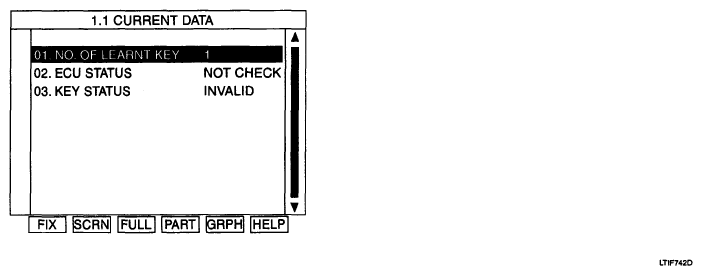

Fig 2: Scan Tool Display - Key Status Invalid
Courtesy of KIA MOTORS AMERICA, INC.

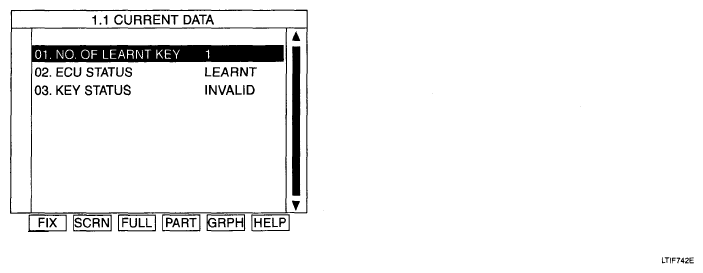

Fig 3: Scan Tool Display - ECU Status Learnt
Courtesy of KIA MOTORS AMERICA, INC.

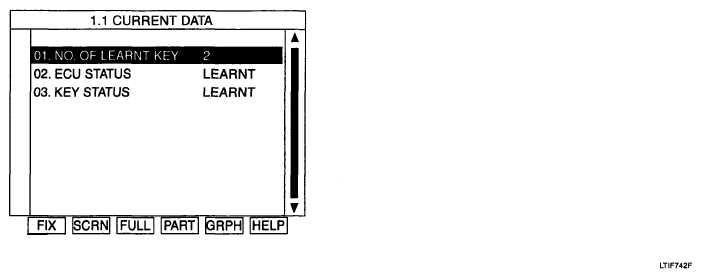

Fig 4: Scan Tool Display - Key Status Learnt
Courtesy of KIA MOTORS AMERICA, INC.

Fig 1: ECM has not matched with any Key yet.

Fig 2: ECM Internal Failure.

Fig 3: IG On with unmatched key.

Fig 4: 2(two) Keys have been matched with ECM.
Is the communication possible between scan tool and Immobilizer system?
YES

If communication between SMARTRA and ECM is OK, Check ECM status of the current data.

If ECM status is "Lock", Please wait for one hour with IG Key "ON" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NOTE: Disconnecting battery or others manipulation can not reduce this time. After connecting the battery the timer starts again for one hour.

NO

Check DLC cable connection between Scanner and DLC. And, update the scan tool program card with latest version. Finally try communication between scan tool and Immobilizer system.

If problem still continues, Substitute with a known-good scan tool and check for proper operation. If the problem is corrected, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
