Floor Console Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the front seat. See REPLACEMENT .

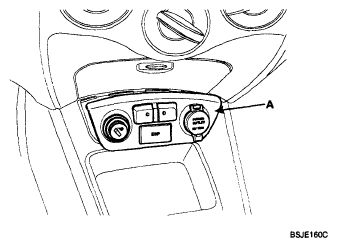

After disconnecting the console switch assembly (A), remove the connector.

Fig 1: Identifying Console Switch Assembly

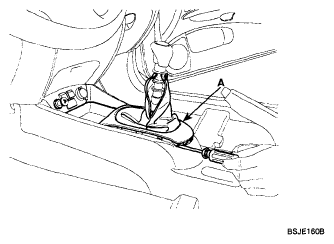

Remove the console upper cover (A).

Fig 2: Identifying Console Upper Cover

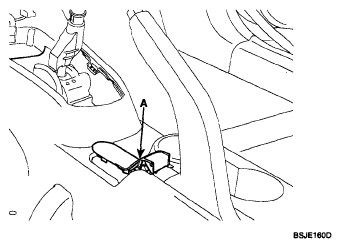

Remove the parking brake cover (A).

Fig 3: Identifying Parking Brake Cover

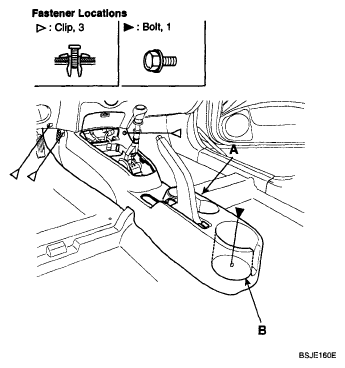

Loosening the console mounting bolt and clip, remove the console assembly (A).

Fig 4: Identifying Console Assembly, Mounting Bolt And Clips
Installation is the reverse of removal.
