Cluster Replacement

Remove the cluster fascia panel. See CLUSTER FASCIA PANEL REPLACEMENT .
Loosen the mounting screws.
CAUTION:
- Take care not to drop the glass scratch the glass surface.

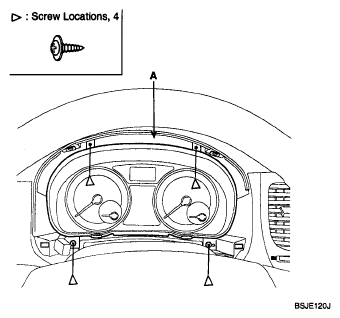

  Fig 1: Identifying Cluster Fascia Panel And Mounting Screws
Disconnect the cluster connector (A), then remove the cluster.

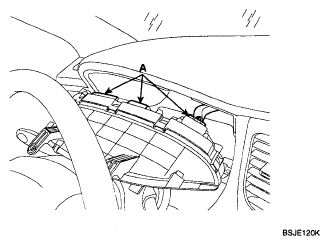

Fig 2: Identifying Cluster Connector
NOTE:
- Make sure the connector is plugged in properly.
