Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

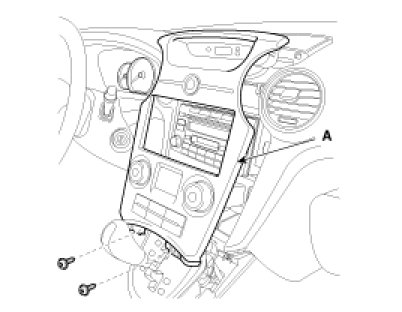

2. After loosening the mounting screw, then remove the center facia panel (A).

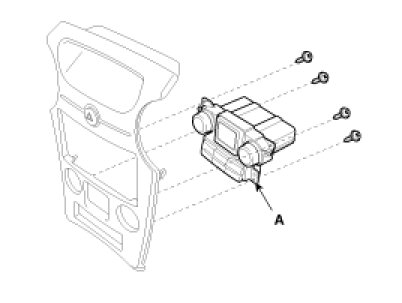

3. Remove the heater & A/C controller (A) after loosening 4 screws.




4. Installation is the reverse order of removal.
