Accelerator Pedal Position Sensor





SPECIFICATIONS

SENSORS

ACCELERATOR POSITION SENSOR (APS)
- Type: Variable resistor type

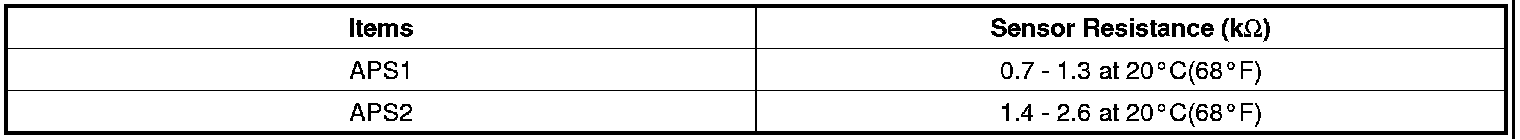

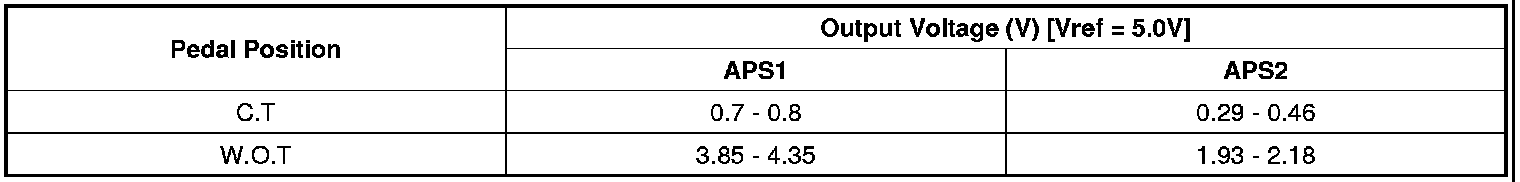

- Specification
