Scan Tool Testing and Procedures

DESCRIPTION

HI-SCAN CHECK
1. Turn the ignition switch off.

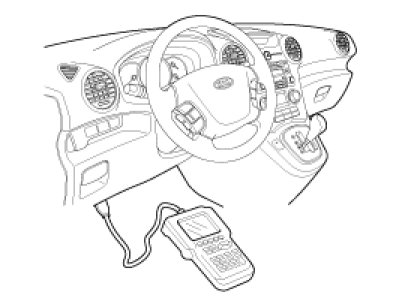

2. Connect the Hi-Scan Pro connector to the data link connector located under the crash pad.




3. Turn the ignition switch on and power on the Hi-Scan Pro.
4. Read DTCs.
5. Find and repair the trouble, and clear the DTCs using Hi-Scan Pro.
6. Disconnect the Hi-Scan Pro.
7. Confirm proper system operation :
A. Turn the ignition switch ON ; the SRS indicator light should be turned on for about six seconds and then to off.
