Function Of Safety Power Window

When driver door power window auto-up switch is operated, safety function is activated.

1. Safety function condition

   When the system detects a force of 100N during the window rising, window is reversed.

2. Length of window reversing (except when holding the auto-up switch)
   • When detect the jamming within 4-300 mm from top of the door.

     → Window is reversed until 350 mm from top of the door.

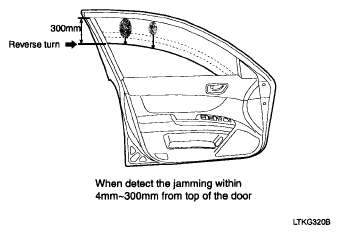

     Fig 1: Identifying Safety Power Window Jamming Position (1 Of 3)

     Courtesy of KIA MOTORS AMERICA, INC.
   • When detect the jamming over the 300 mm from top of the door.

     → Window is reversed until 50 mm from jamming position.

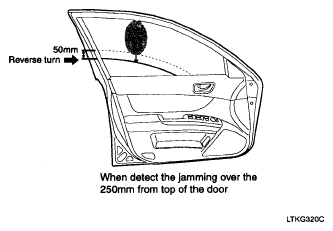

   Fig 2: Identifying Safety Power Window Jamming Position (2 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.
3. Length of window reversing (holding the auto-up switch)
   • When detect the jamming during holding the auto-up switch.

     → Window is reversed until 20 mm from jamming position.

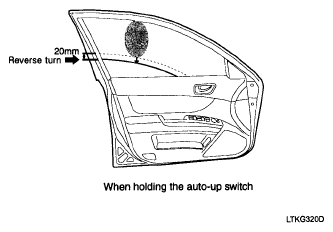

   Fig 3: Identifying Safety Power Window Jamming Position (3 Of 3)

   Courtesy of KIA MOTORS AMERICA, INC.
4. Safety function is not available area

   Safety function is not available within 4 mm from top of the door.
