Front Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the front door trim panel. Refer to FRONT DOOR .
  3. Remove the window motor (B) after disconnecting the motor connector (A) and mounting nuts.

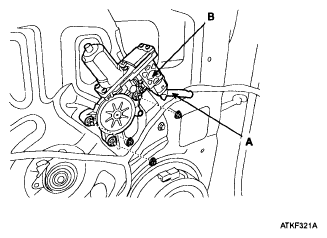

    Fig 1: Identifying Window Motor And Connector
    G04885063Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
