Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Gasoline Engine Control System
>>
Etc (Electric Throttle Control) System
>>
Description
>>
Schematic Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram: Notes

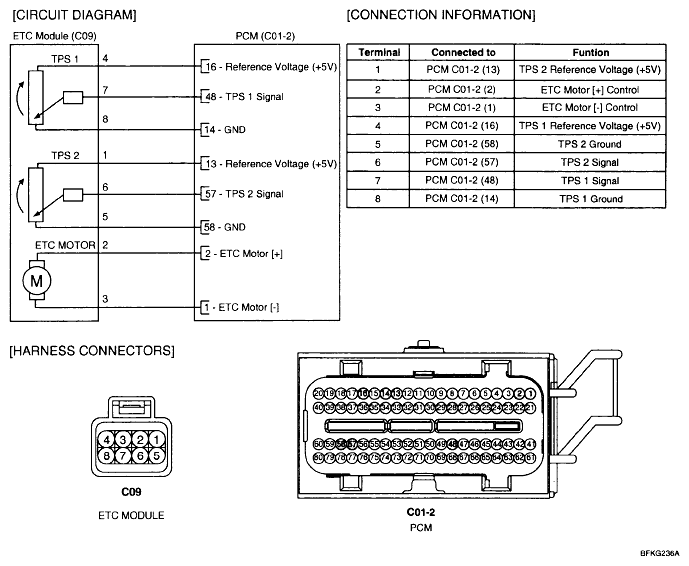

Fig 1: Throttle Control Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
