Battery Test Procedure: Notes

Connect the tester to the battery.
- Red clamp to battery positive (+) terminal.
- Black clamp to battery negative (-) terminal.

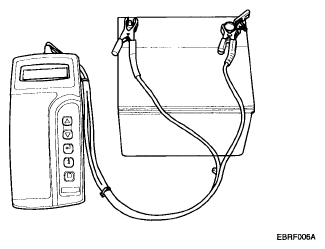

Fig 1: Connecting Micro 570 Analyzer To Battery
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.
The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE". Make your selection by pressing the arrow buttons; then press ENTER.

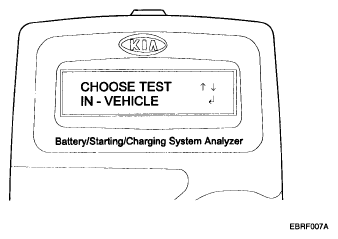

Fig 2: Identifying Micro 570 Analyzer Display - IN VEHICLE
Courtesy of KIA MOTORS AMERICA, INC.
Choose either CCA or CCP and press the ENTER button.

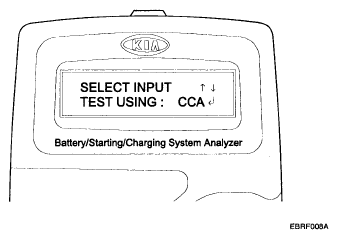

Fig 3: Identifying Micro 570 Analyzer Display - CCA
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- CCA: Cold cranking amps, is an SAE specification for cranking batteries at -18°C (0°F).
- CCP: Cold cranking amps, is an SAE specification for Korean manufacturer's for cranking batteries at -18° (0°F).
Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.

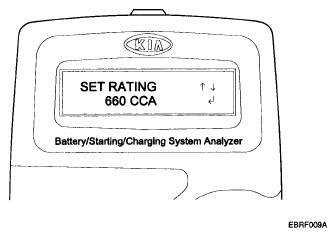

Fig 4: Identifying Micro 570 Analyzer Display - 660 CCA
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.
The tester (Micro 570) displays battery test results including voltage and battery ratings.
A relevant action must be given according to the test results by referring to the battery test results as shown in BATTERY TEST RESULTS .

NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.
To conduct starter test, press ENTER.

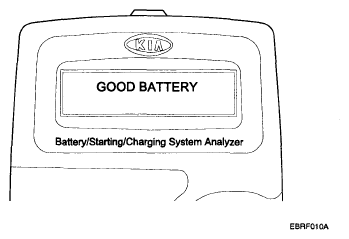

Fig 5: Identifying Micro 570 Analyzer Display - GOOD BATTERY
Courtesy of KIA MOTORS AMERICA, INC.
