Charging System Test Procedure: Notes

Press ENTER to begin charging system test.

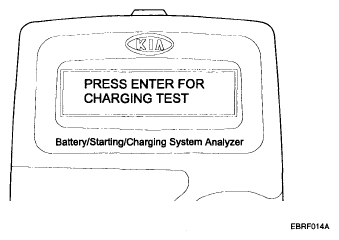

Fig 1: Identifying Micro 570 Analyzer Display - Charging System Test
Courtesy of KIA MOTORS AMERICA, INC.
ENTER button is pressed, the tester displays the actual voltage of generator.
Press ENTER to test the charging system.

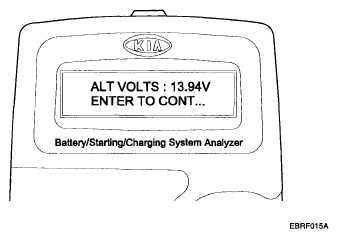

Fig 2: Micro 570 Display - Actual Voltage Of Generator
Courtesy of KIA MOTORS AMERICA, INC.
The MICRO 570 will prompt you to rev the engine until the rev is detected. It will then collect the data.

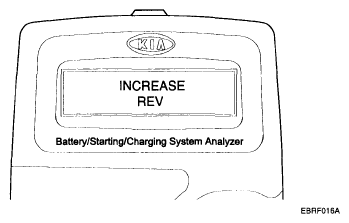

Fig 3: Identifying Micro 570 Analyzer Display - INCREASE REV
Courtesy of KIA MOTORS AMERICA, INC.
Press ENTER.

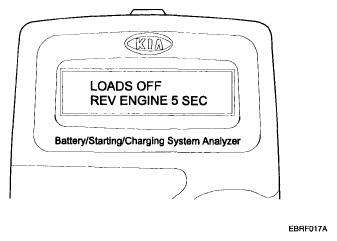

Fig 4: Identifying Micro 570 Analyzer Display - REV ENGINE 5 SEC
Courtesy of KIA MOTORS AMERICA, INC.
The MICRO 570 will analyze the charging system output at idle for comparison to other readings.

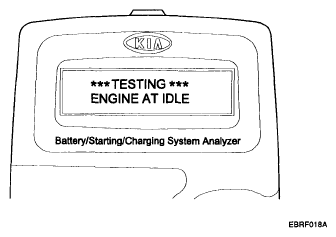

Fig 5: Identifying Micro 570 Analyzer Display - ENGINE AT IDLE
Courtesy of KIA MOTORS AMERICA, INC.
The MICRO 570 will detect the amount of ripple from the charging system to the battery. Excessive ripple usually means the stator is damaged or that one or more generator diodes have failed.

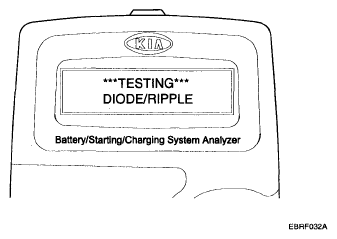

Fig 6: Identifying Micro 570 Analyzer Display - DIODE/RIPPLE
Courtesy of KIA MOTORS AMERICA, INC.
The MICRO 570 will prompt you to turn on accessary loads. It will then test at idle and prompt you to rev the engine. The analyzer will determine if the charging system can provide enough current for the demands of the vehicle's electrical system.

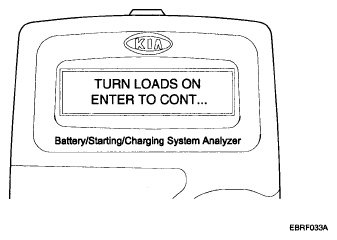

Fig 7: Identifying Micro 570 Analyzer Display - TURN LOADS ON
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When asked to turn on the accessory loads, turn on the blower to high (heater), the high beam headlights, and rear defogger. DO NOT use cyclical loads such as air conditioning or windshield wipers.
After the test, the MICRO 570 will display the idle voltage, load voltage and the state results.

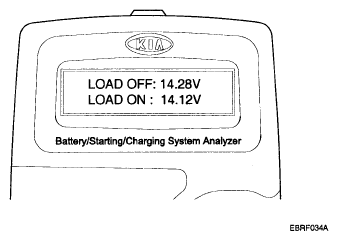

Fig 8: Micro 570 Display Analyzer Display - IDLE AND LOAD VOLTAGE
Courtesy of KIA MOTORS AMERICA, INC.

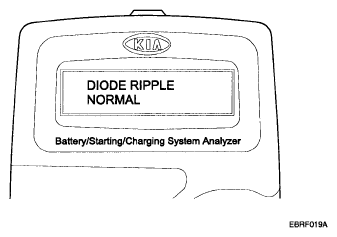

Fig 9: Identifying Micro 570 Analyzer Display - DIODE RIPPLE NORMAL
Courtesy of KIA MOTORS AMERICA, INC.
