Starter Test Procedure: Notes

After the battery test, press ENTER immediately for the starter test.

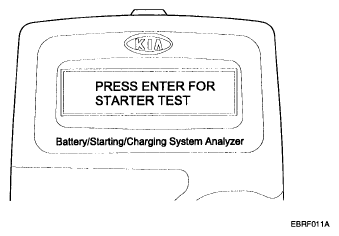

Fig 1: Identifying Micro 570 Analyzer Display - ENTER
Courtesy of KIA MOTORS AMERICA, INC.
After pressing ENTER key, start the engine.

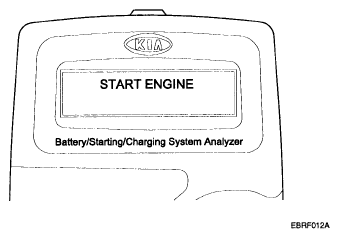

Fig 2: Identifying Micro 570 Analyzer Display - START ENGINE
Courtesy of KIA MOTORS AMERICA, INC.
Cranking voltage and starter test results will be displayed on the screen.
Take a relevant action according to the test results by referring to the starter test results as given below.

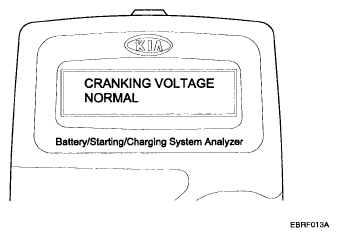

Fig 3: Identifying Micro 570 Analyzer Display - CRANKING VOLTAGE NORMAL
Courtesy of KIA MOTORS AMERICA, INC.
To continue charging system test, press ENTER.
