SRS Control Module: Removal

Disconnect the negative (-) cable from battery and wait for at least three minutes.
Remove ignition key from the vehicle.
Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
Remove the floor console and heater ducts. Refer to FLOOR CONSOLE REPLACEMENT and INTERIOR .
Press the lock (1), then pull back the connector lever (2) until it clicks.

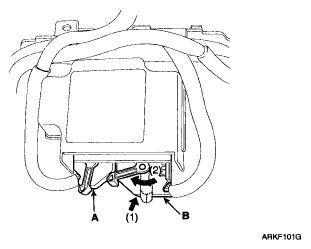

Fig 1: Pulling Back Connector Lever
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the SRSCM harness connector (A) and (B) from the SRSCM.

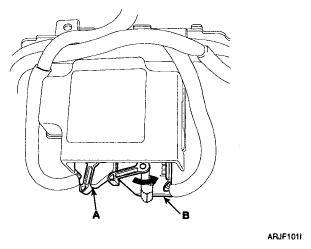

Fig 2: Identifying Supplemental Restraints System Control Module Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the SRSCM mounting bolt (A) and nuts (B) from the SRSCM, then remove the SRSCM.

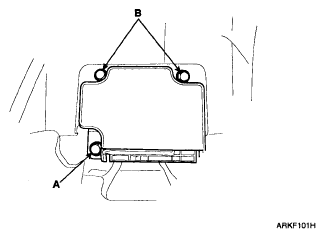

Fig 3: Identifying Supplemental Restraints System Control Module Mounting Bolt And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
