Throttle Position Sensor





SPECIFICATIONS

INPUT SENSORS

Throttle Position Sensor (TPS)
> Type: Variable resistor type

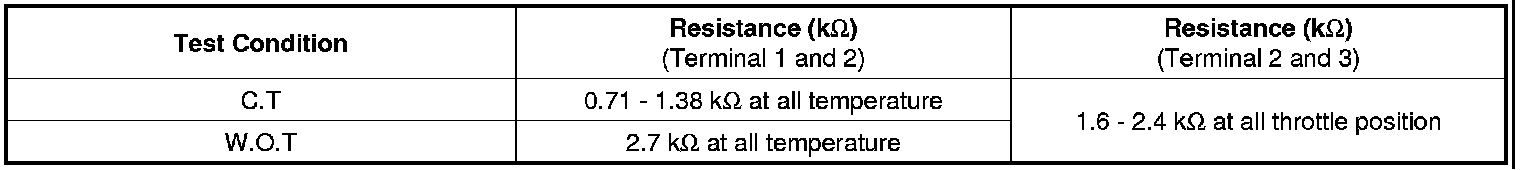

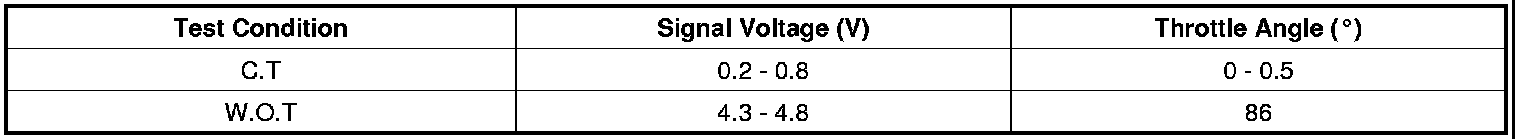

> Specification
