Repair Procedures

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia lower panel.
3. Disconnect the humidity sensor connector.

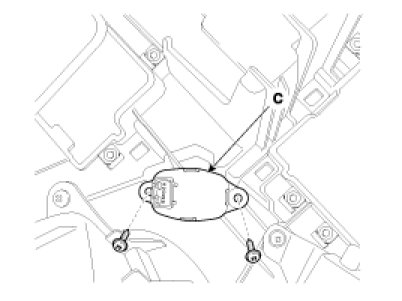

4. Loosen 2 screws and then remove the humidity sensor (C).




5. Installation is the reverse order of removal.
