Restraints and Safety Systems: Locations

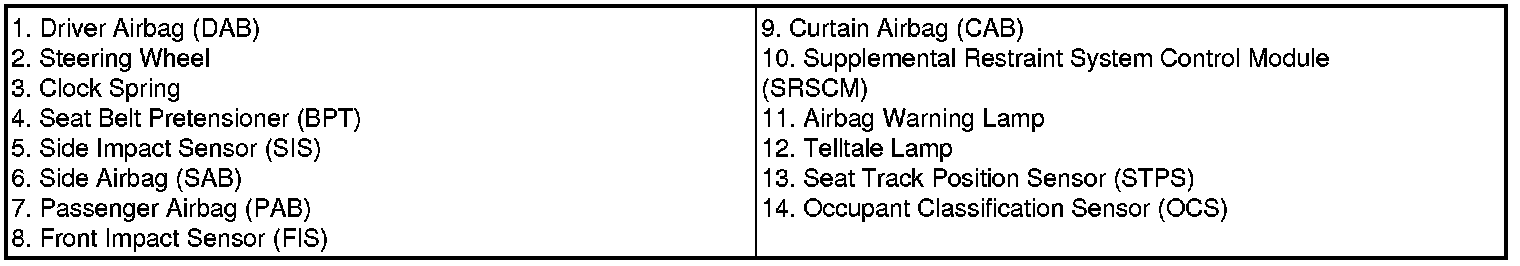

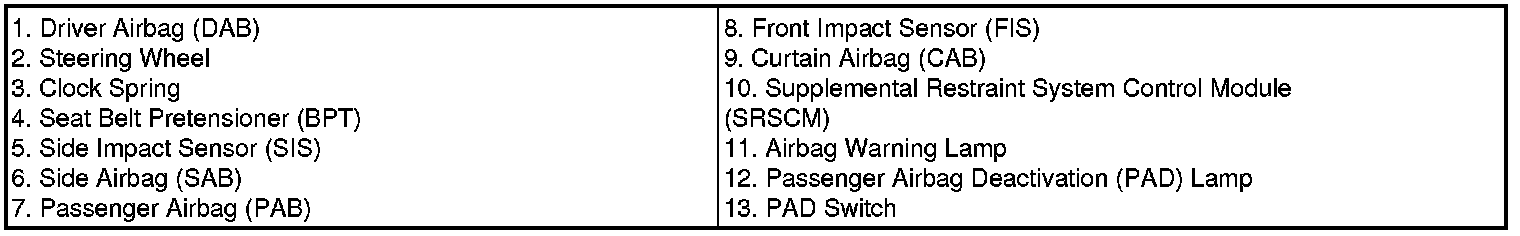

Components

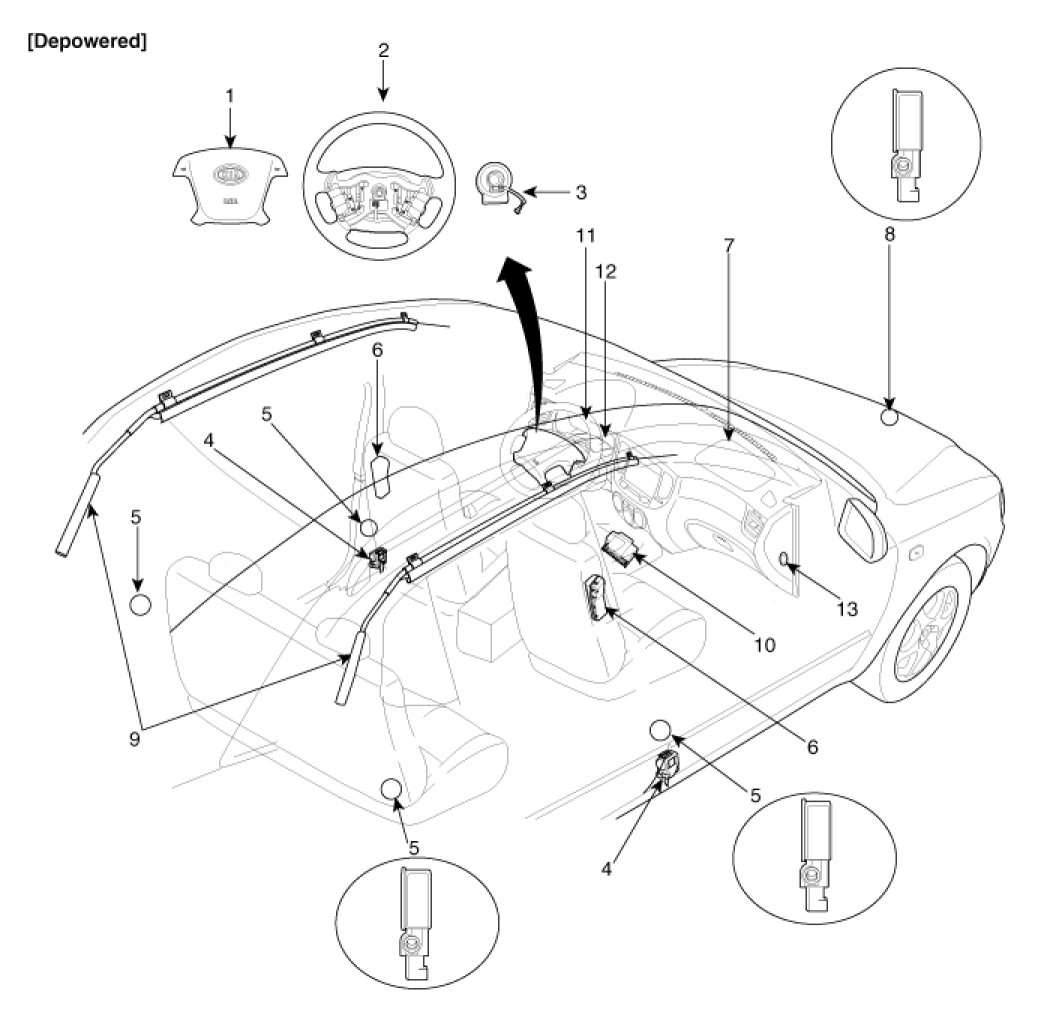

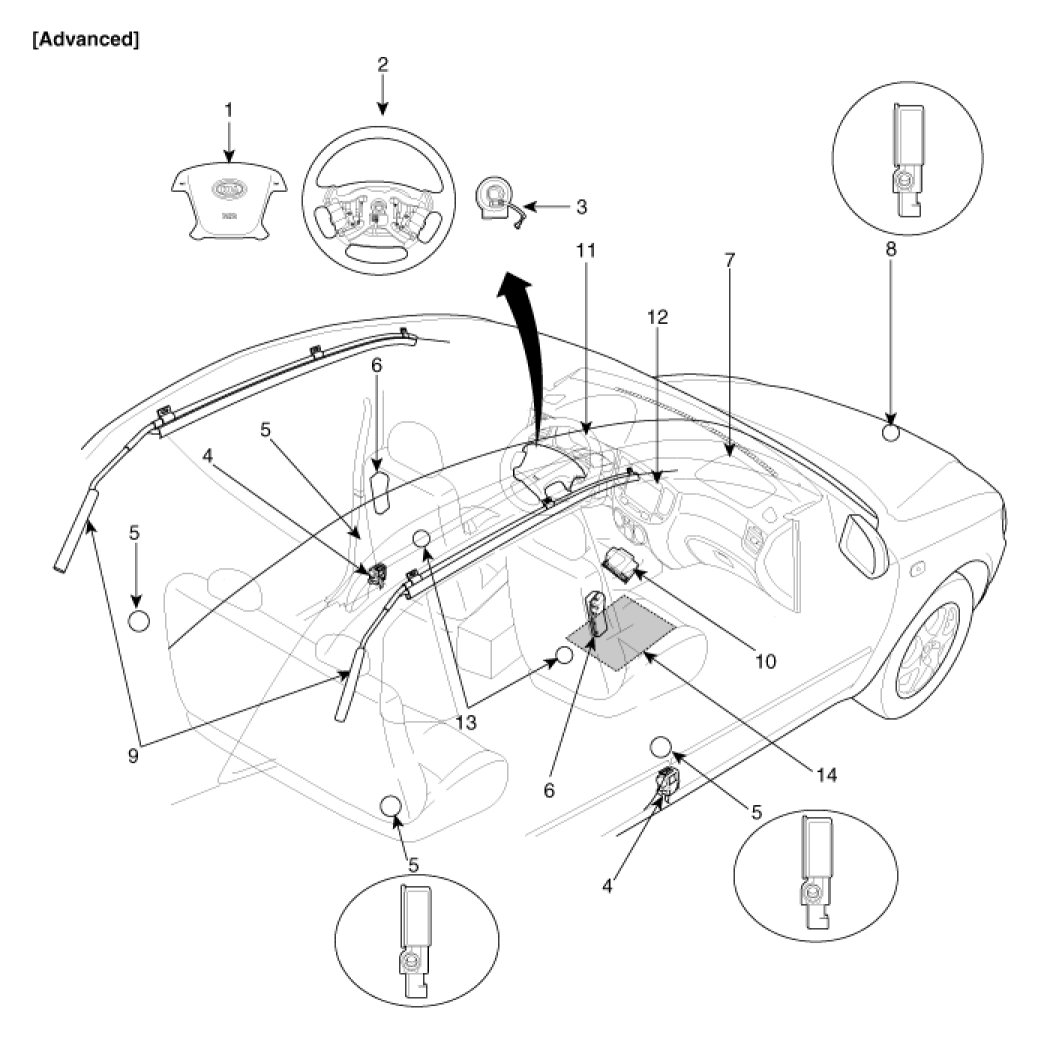

Components Location

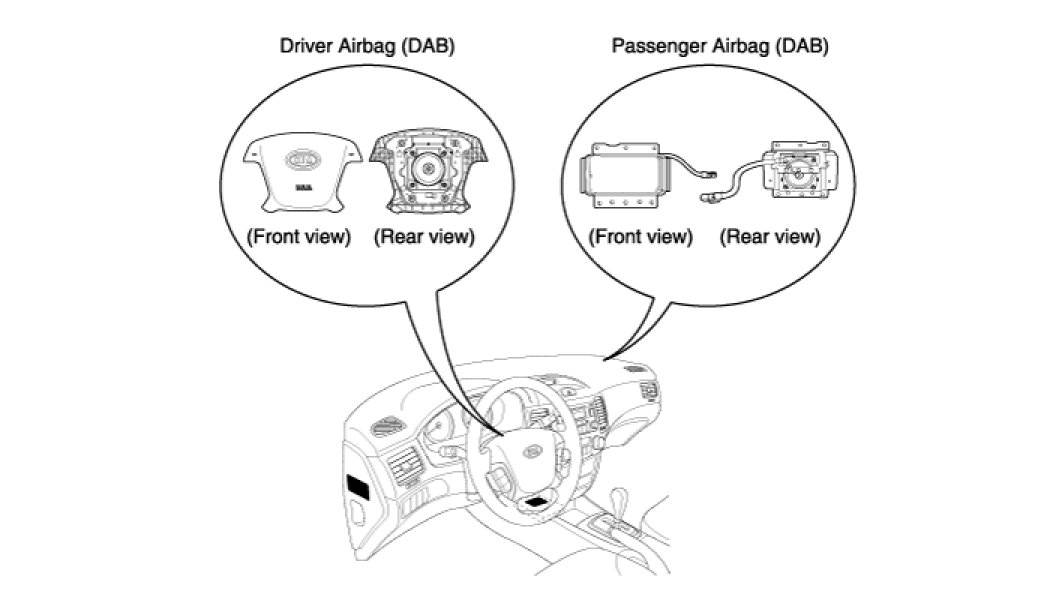

Driver Airbag (DAB) / Passenger Airbag (PAB)

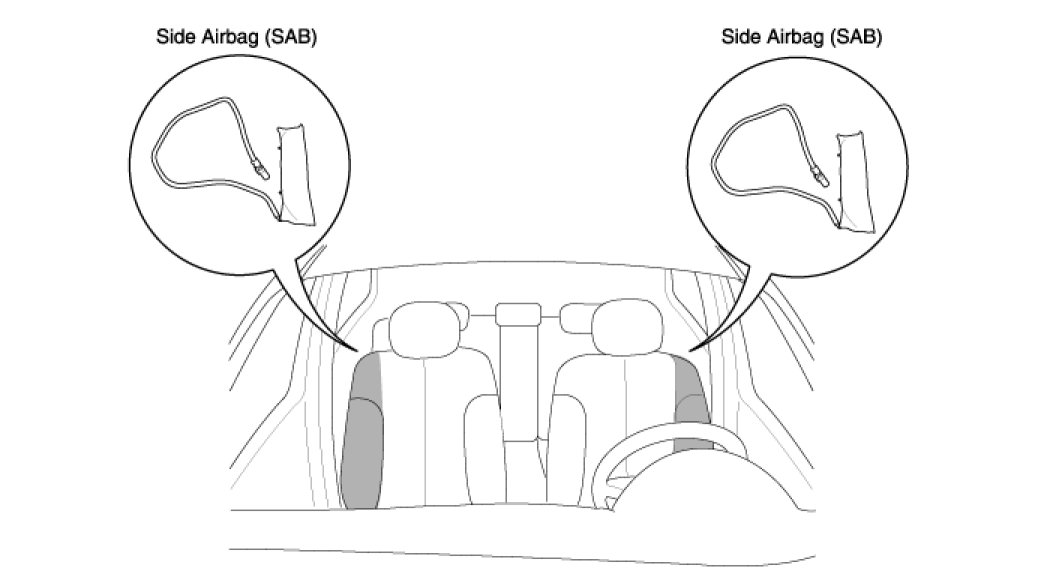

Side Airbag (SAB)

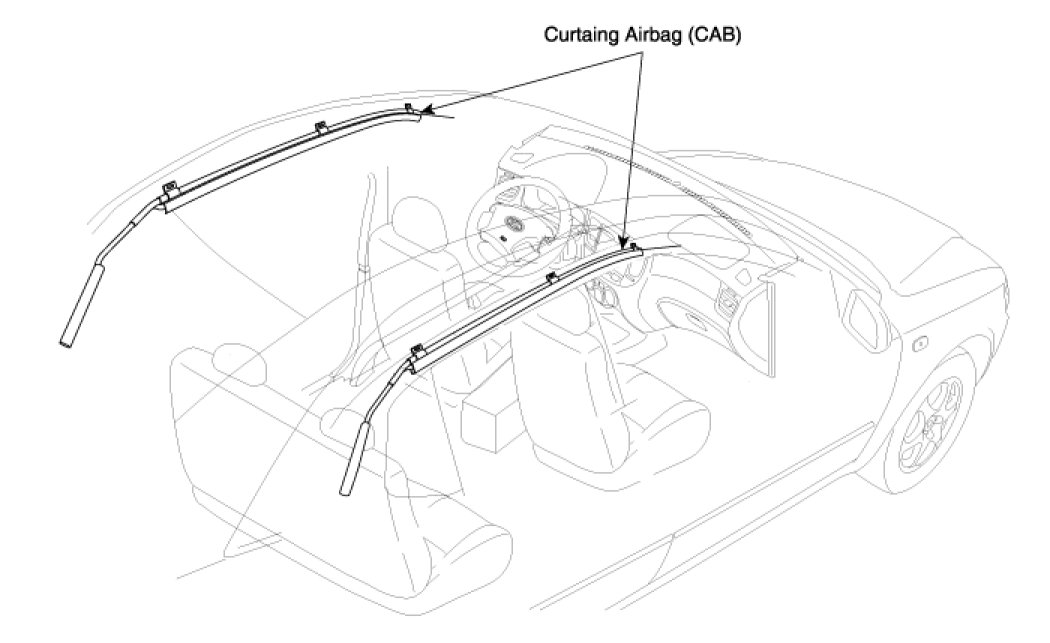

Curtain Airbag (CAB)

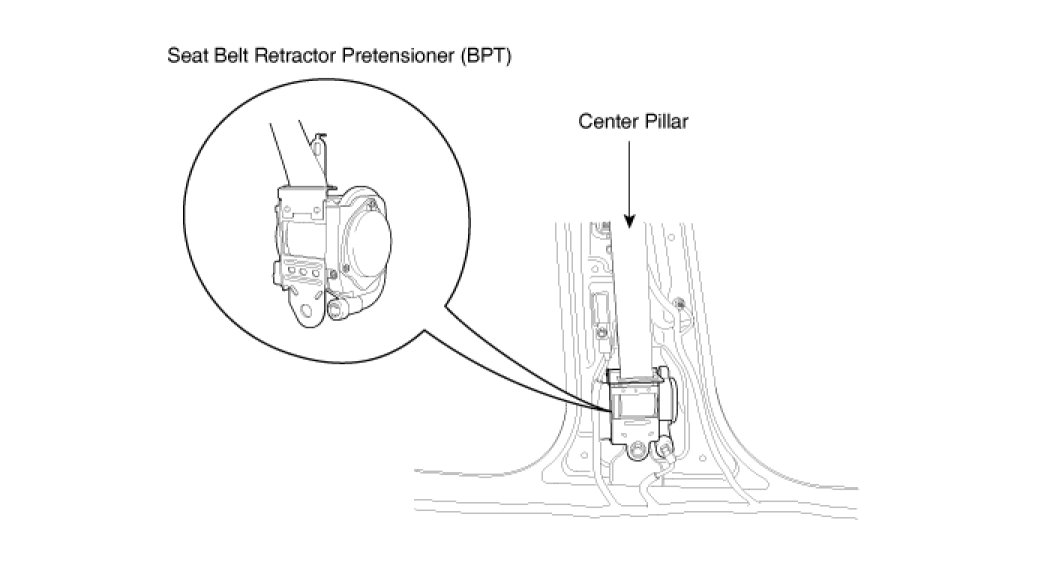

Seat Belt Retractor Pretensioner (BPT)
Supplemental Restraint System Control Module (SRSCM)

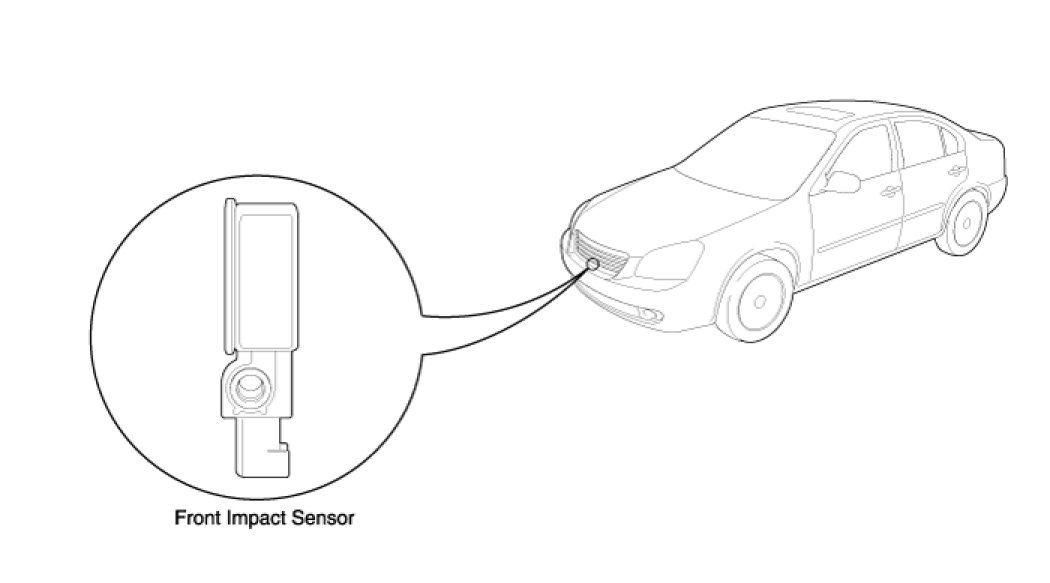

Front Impact Sensor (FIS)

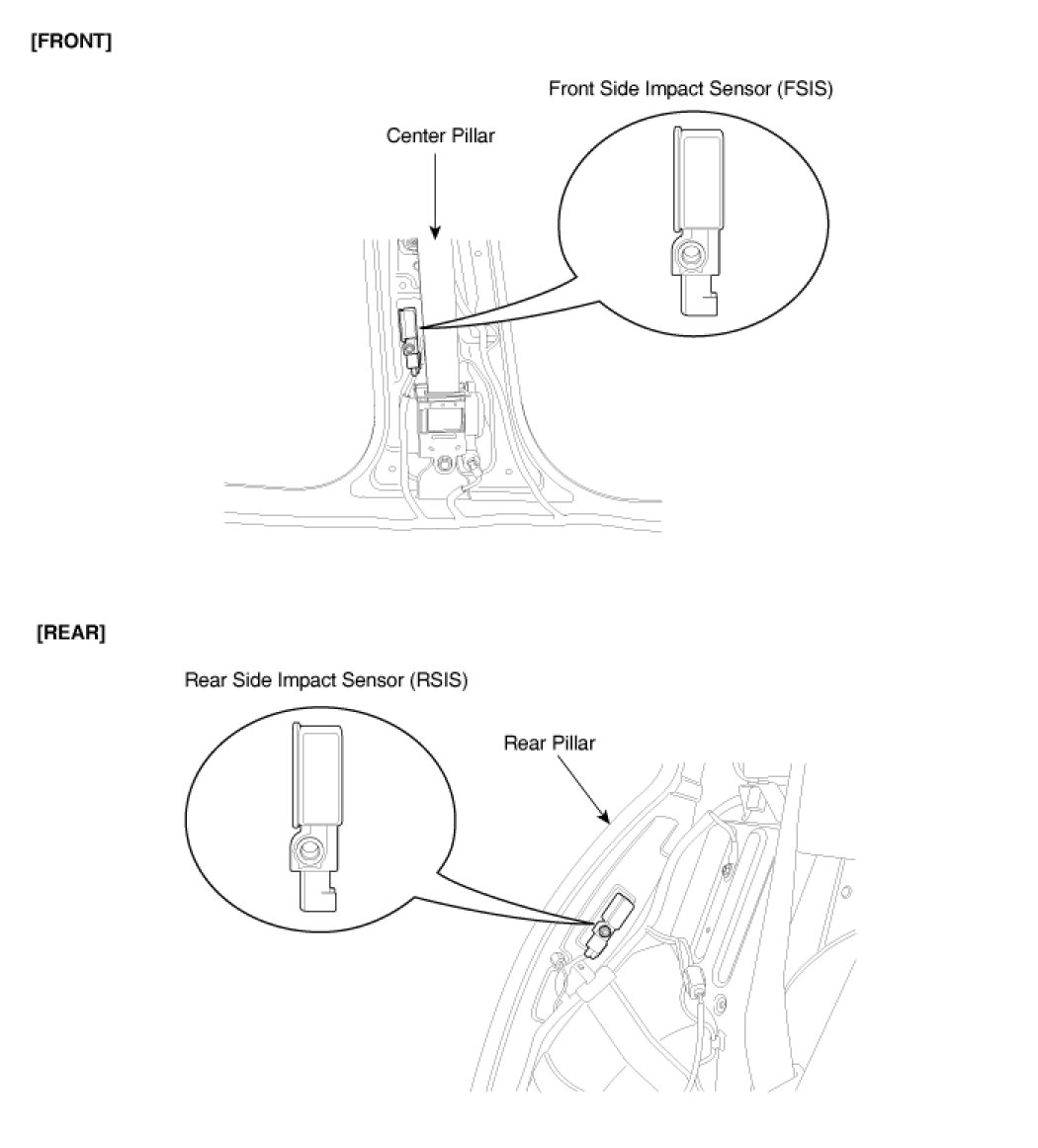

Side Impact Sensor (SIS)
