Throttle Position Sensor





Specifications

Sensors

Throttle Position Sensor (TPS)
- Type: Variable resistor type

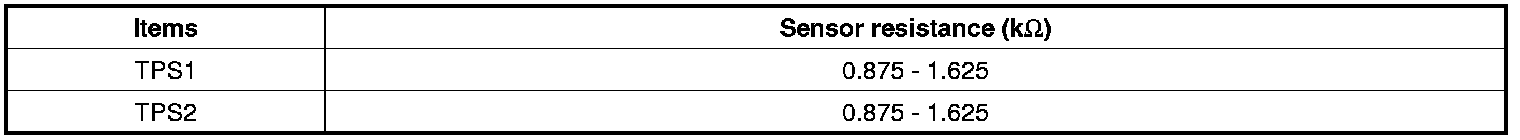

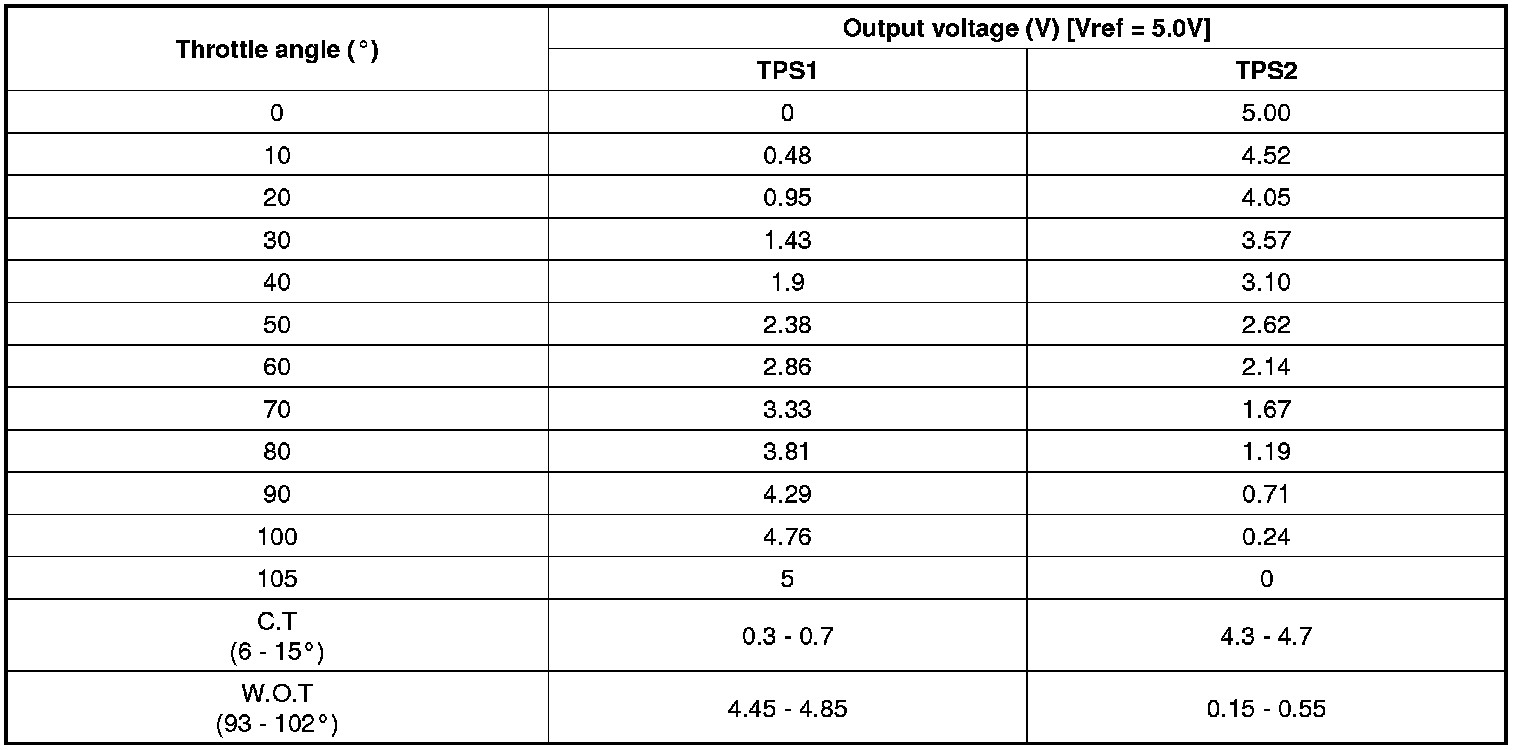

- Specification
