Camshaft Bearing Cap

Camshaft Bearing Cap

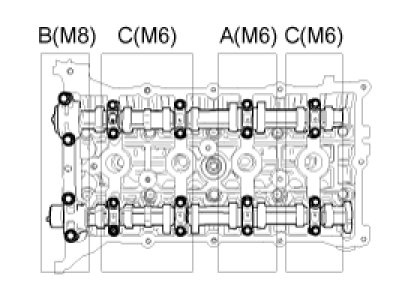

Tightening order Group A -> Group B -> Group C.

Tightening torque

Step 1
M6 5.9 N.m ( 0.6 kgf.m, 4.3 lb-ft)
M8 14.7 N.m ( 1.5 kgf.m, 10.8 lb-ft)

Step 2
M6 10.8 - 12.7 N.m (1.1 - 1.3 kgf.m, 7.9 - 9.4 lb-ft)
M8 27.5 - 31.4 N.m (2.8 - 3.2 kgf.m, 20.3 - 23.1 lb-ft)
