Main Bearing Cap

Main Bearing Cap
Tightening torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft) + 120°

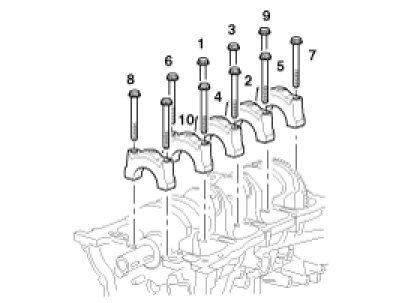

Install and uniformly tighten the 10 bearing cap bolts(A), in several passes, in the sequence shown.

Tightening torque 29.4 N.m (3.0 kgf.m, 21.7 lb-ft)





Retighten the bearing cap bolts by 120° in the numerical order shown.
