System Specifications





TIGHTENING TORQUE

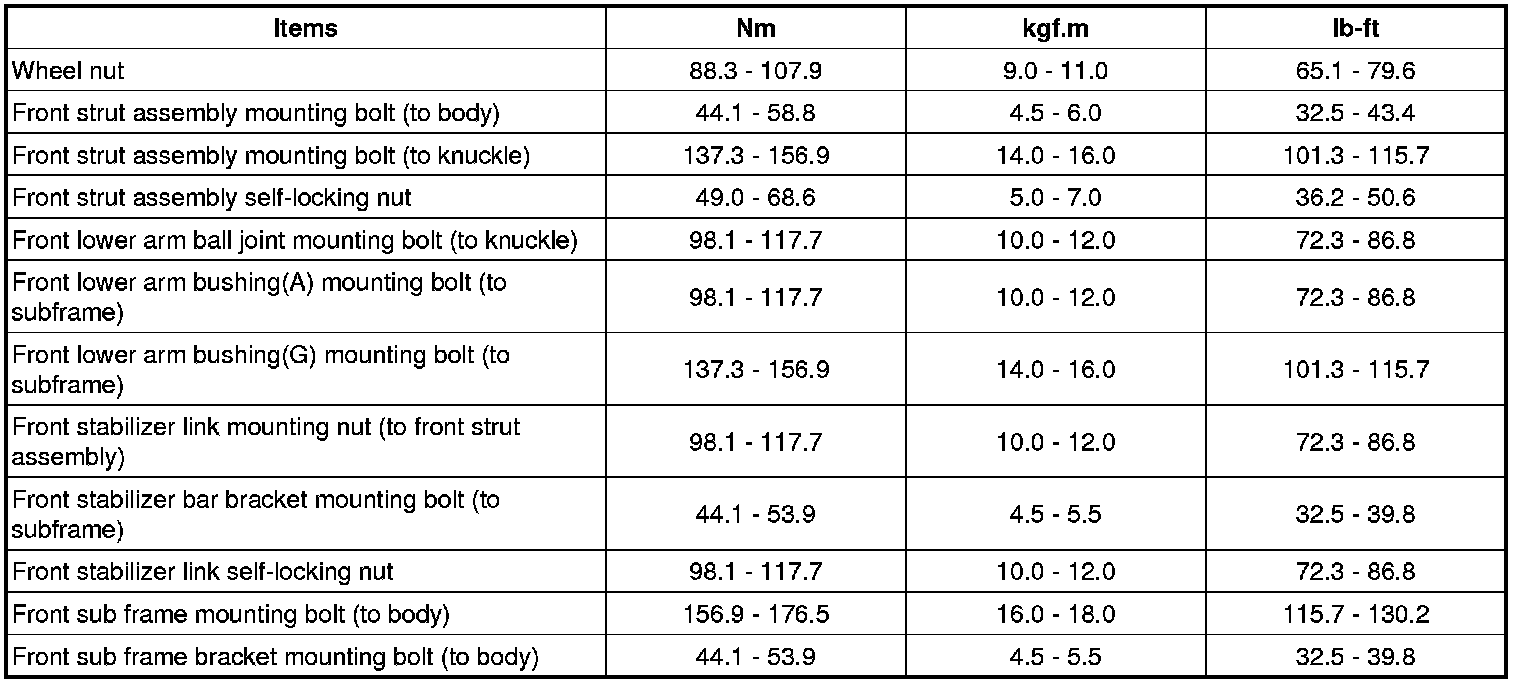

FRONT SUSPENSION

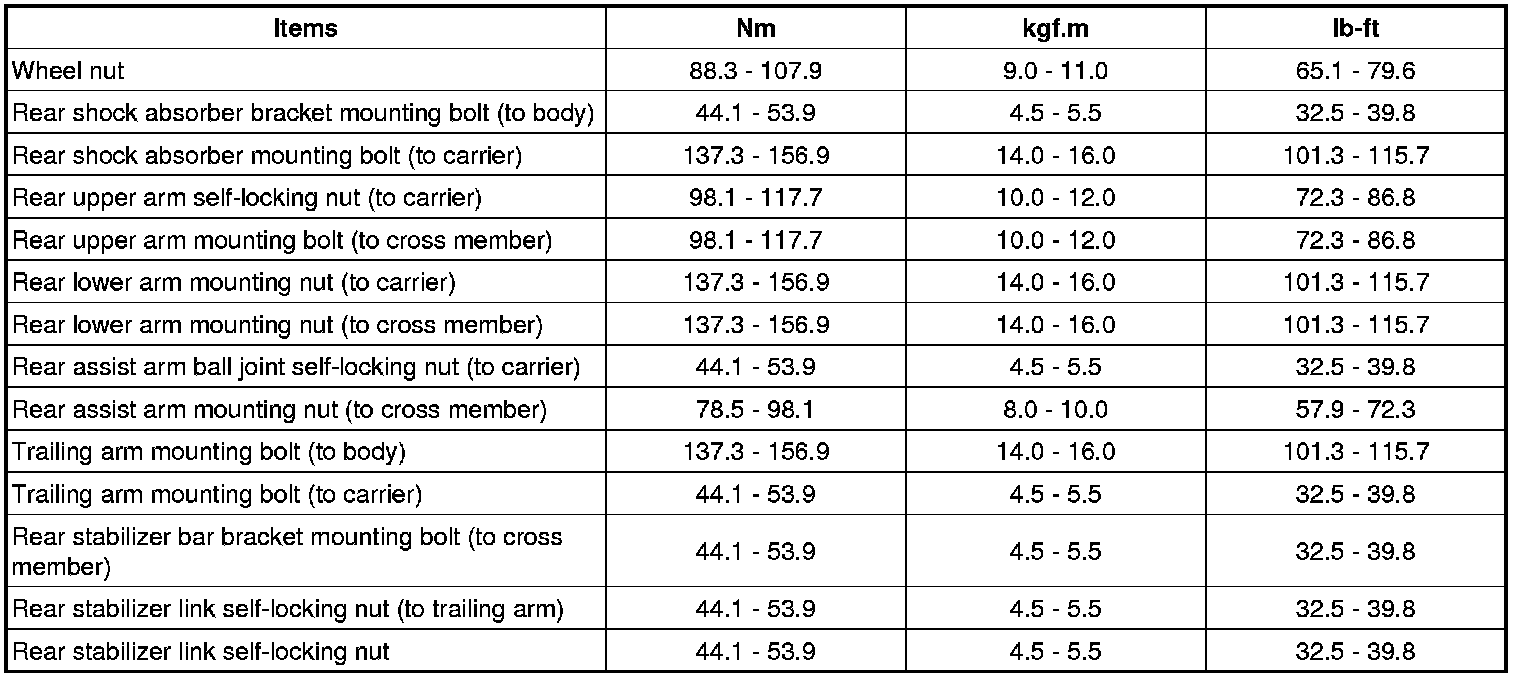

REAR SUSPENSION






CAUTION:
Replace the self-locking nuts with new ones after removal.
