Key Warning Switch Inspection





Inspection

Key Warning Switch Inspection
1. Remove the driver's crash pad lower panel. (see Body group-crash pad)

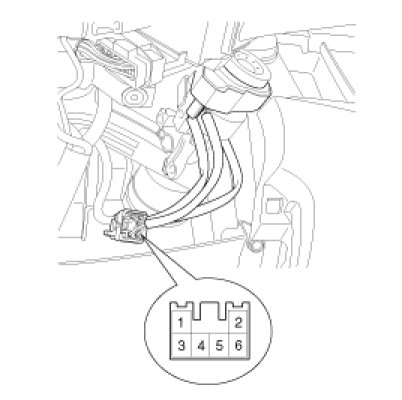

2. Disconnect the 6P connector from the door warning switch.

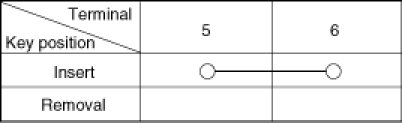

3. Check for continuity between the terminals in each position according to the table.
