Fuel System - Specifications





Specifications

Sensors

Accelerator Position Sensor (APS)
- Type: Variable resistor type

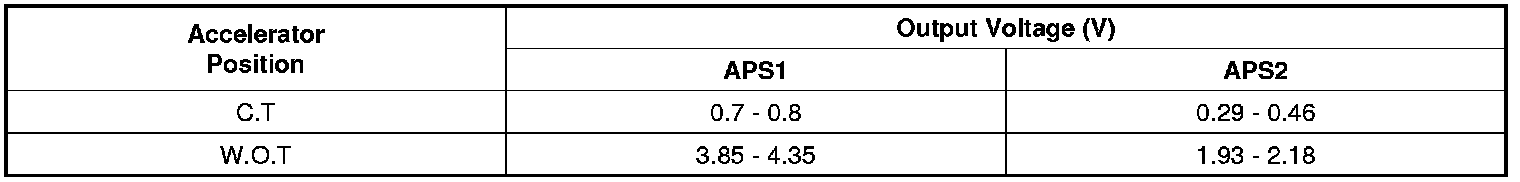

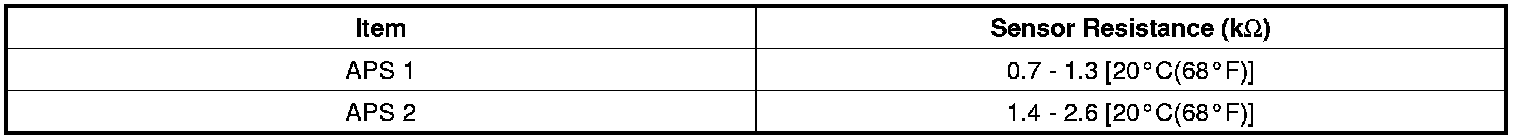

- Specification
