Intake Manifold

Intake manifold

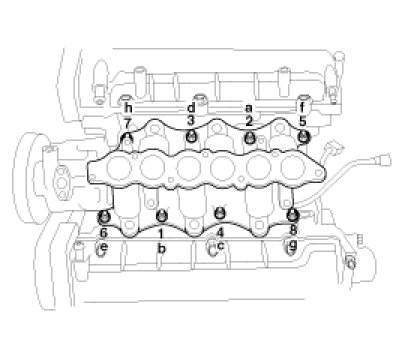

Install the intake manifold assembly with a new gasket to a cylinder head assembly. Tighten the bolts in two steps.

Tightening torque:
Step 1(a~h) 3.9 - 5.9 Nm (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Step 2(1 - 8) 18.6 - 23.5 Nm (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
