Crash Pad: Components

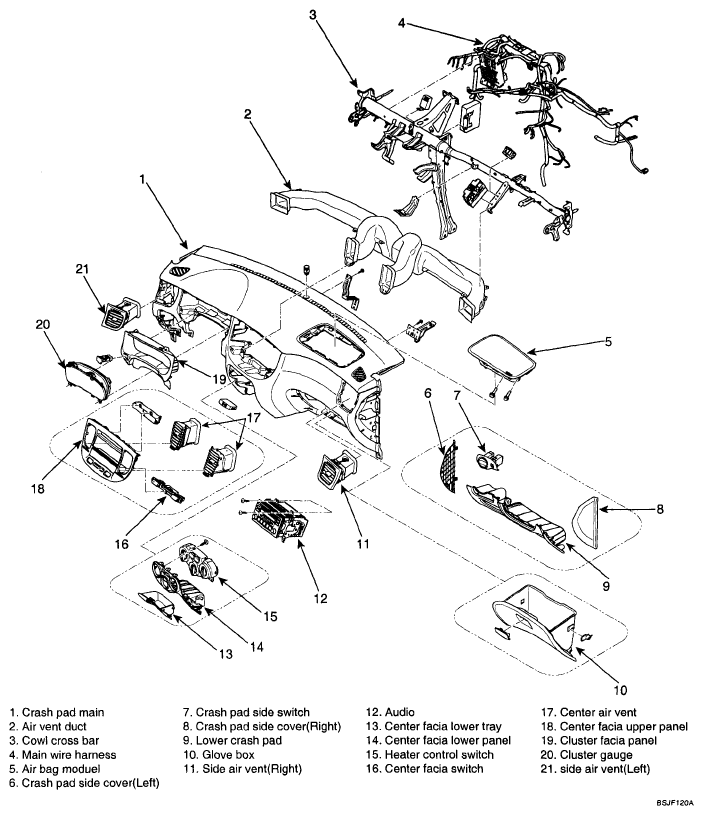

Fig 1: Identifying Crash Pad Components
G04863394Courtesy of KIA MOTORS AMERICA, INC.
