Heater Control Unit Replacement

Remove the center lower tray (A).

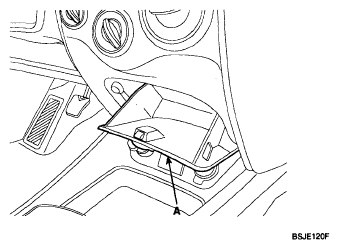

Fig 1: Identifying Center Lower Tray
Courtesy of KIA MOTORS AMERICA, INC.
After loosen the center fascia lower panel mounting screw, remove the center fascia lower panel (A). Disconnect the heater control unit connector (B).

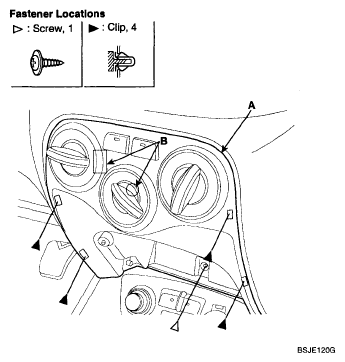

Fig 2: Identifying Center Fascia Lower Panel And Heater Control Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the heater control cable (A).

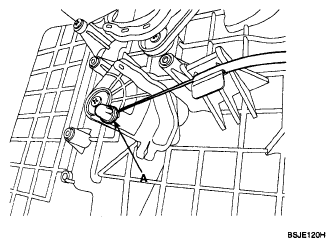

Fig 3: Identifying Heater Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the heater control unit mounting screw. Remove the heater control unit (A).

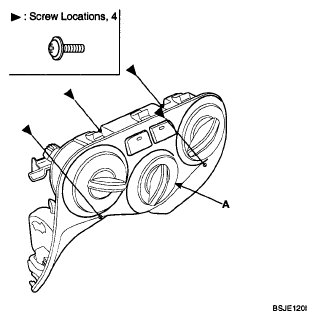

Fig 4: Identifying Heater Control Unit And Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
