Component Location

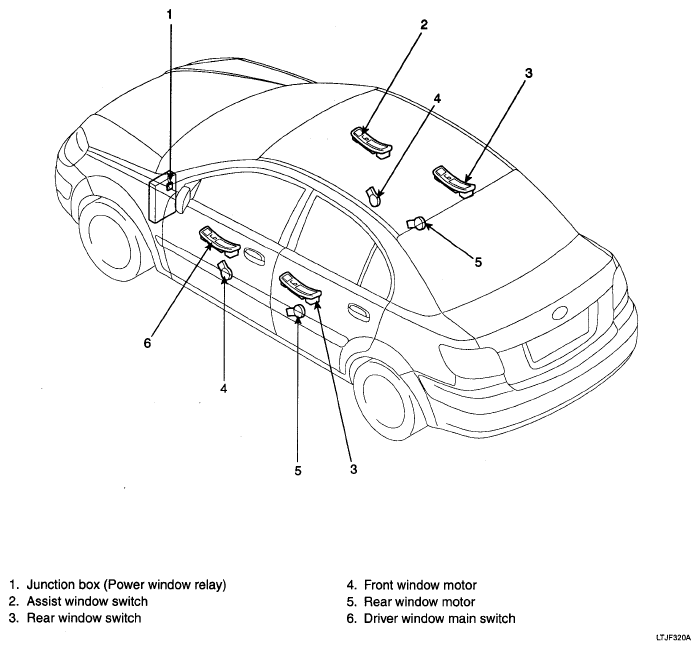

Fig 1: Identifying Power Window Components & Locations
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
