Front Power Window Motor

  1. Remove the front door trim panel. Refer to INTERIOR .
  2. Disconnect the connector from the motor.

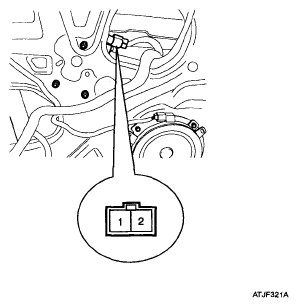

    Fig 1: Front Power Window Motor & Connector Identification
    G04863669Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

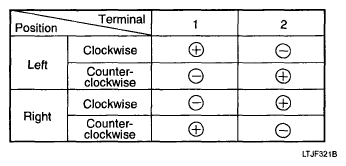

    Fig 2: Testing Front Power Window Motor
    G04863670Courtesy of KIA MOTORS AMERICA, INC.
