Circuit Diagram

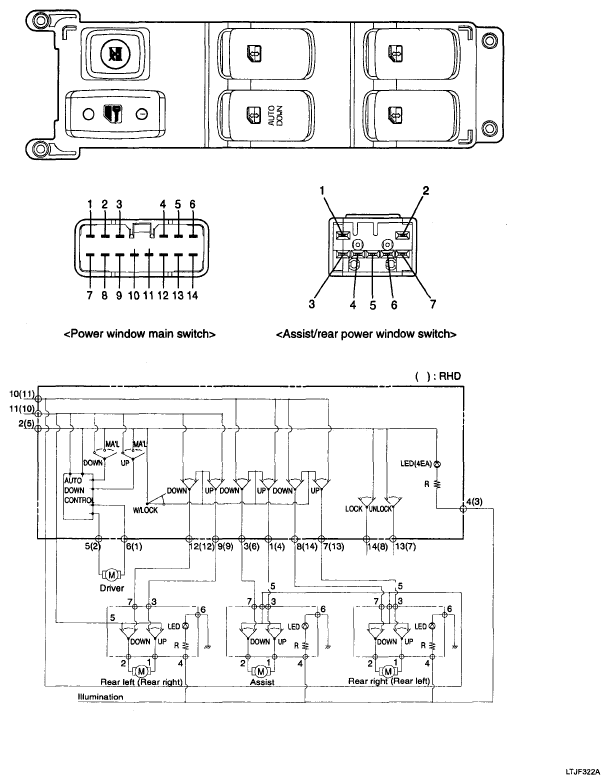

Fig 1: Power Window Switch Circuit Diagram & Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
