Power Windows: Troubleshooting

  1. No windows operate from the main switch on the driver door.

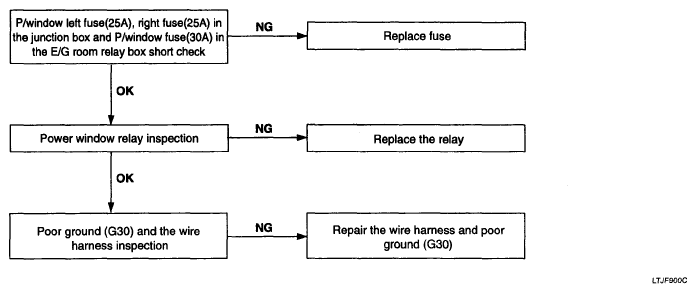

    Fig 1: Power Window Troubleshooting Flow Chart (1 Of 3)
    G04863681Courtesy of KIA MOTORS AMERICA, INC.
  2. Driver side window does not operate.

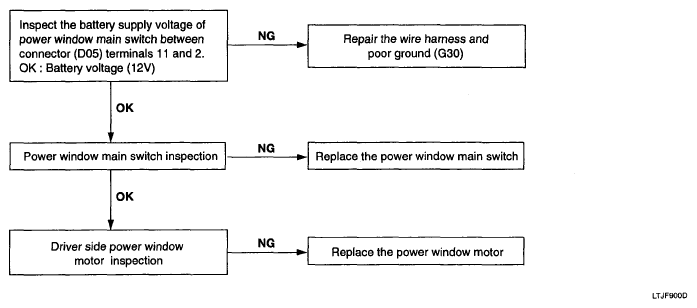

    Fig 2: Power Window Troubleshooting Flow Chart (2 Of 3)
    G04863682Courtesy of KIA MOTORS AMERICA, INC.
  3. Assist side window does not operate.

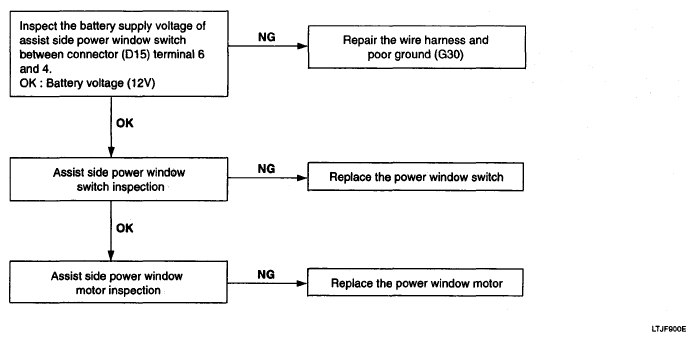

    Fig 3: Power Window Troubleshooting Flow Chart (3 Of 3)
    G04863683Courtesy of KIA MOTORS AMERICA, INC.
