Starting System: Starter: Replacement

Disconnect the battery negative cable.
Remove the air cleaner assembly. Refer to REMOVAL .

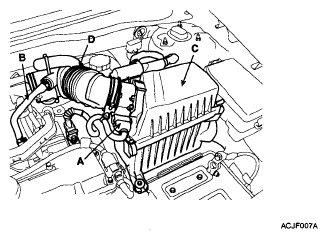

Fig 1: Identifying Intake Air Hose And Air Cleaner Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

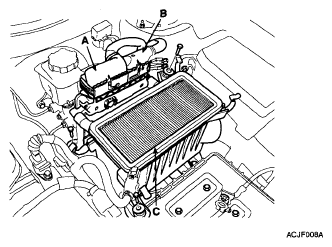

Fig 2: Identifying Air Cleaner Element And Air Cleaner Lower Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift cable and bracket (M/T).

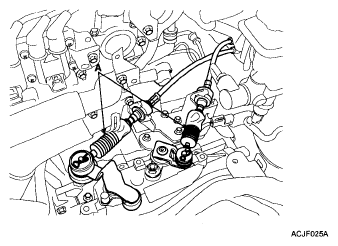

Fig 3: Identifying Shift Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the starter cable (A) from the B terminal (B) on the solenoid (C), then disconnect the connector (D) from the S terminal (E).

Fig 4: Identifying Starter Cable, Terminal & Solenoid
Courtesy of KIA MOTORS AMERICA, INC.
Remove the 2 bolts holding the starter, then remove the starter.
Installation is the reverse of removal.
Connect battery negative cable to battery.
