SRS Control Module: Removal

  1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
  2. Remove ignition key from the vehicle.
  3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
  4. Remove the floor console. Refer to CONSOLE .
  5. Press the lock (1), then pull back the connector lever (2) until it clicks.

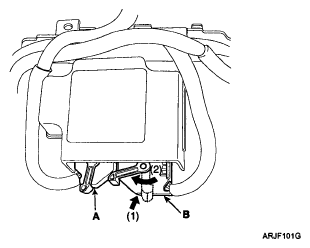

    Fig 1: Identifying SRS Control Module Lock & Connector Lever
    G04863025Courtesy of KIA MOTORS AMERICA, INC.
  6. Disconnect the SRSCM harness connector (A) and (B) from the SRSCM.
  7. Remove the SRSCM mounting bolts (3EA) from the SRSCM, then remove the SRSCM.

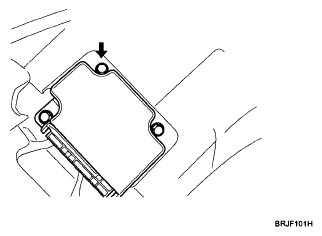

    Fig 2: Identifying SRSCM Mounting Bolts
    G04863026Courtesy of KIA MOTORS AMERICA, INC.
