Automatic Transaxle: Removal

CAUTION:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:

Mark all wiring and hoses to avoid mis-connection.

Disconnect the battery terminals and then remove battery.
Remove the battery and battery tray (A).

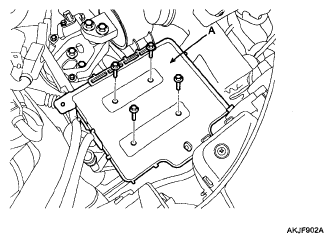

Fig 1: Battery Tray Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake air hose and air cleaner assembly.

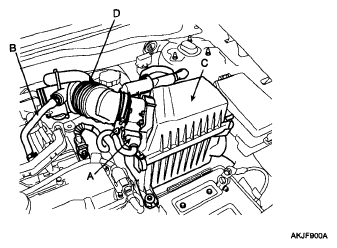

1. Disconnect the AFS (Air Flow Sensor) connector (A).
2. Disconnect the breather hose (B) from intake air hose (D).
3. Remove the intake air hose (D) and air cleaner upper cover (C).

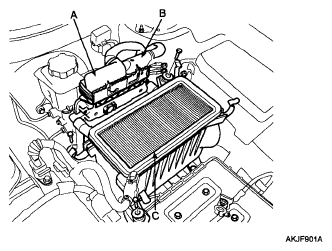

  Fig 2: Identifying Intake Air Hose And Air Cleaner Upper Cover
  Courtesy of KIA MOTORS AMERICA, INC.
4. Disconnect the ECM connector (A, B).
5. Remove the air cleaner element and lower cover (C).

  Fig 3: Identifying Air Cleaner Element And Lower Cover
  Courtesy of KIA MOTORS AMERICA, INC.

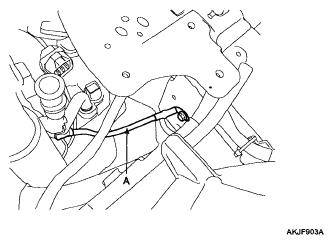

Remove the ATF (Automatic transaxle fluid) cooler hose (A).

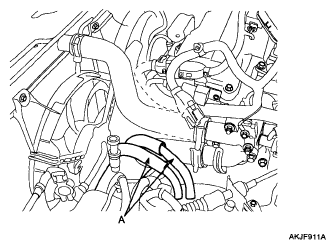

Fig 4: Identifying ATF (Automatic Transaxle Fluid) Cooler Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle ground cable (A).

Fig 5: Identifying Transaxle Ground Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle wire harness connectors and control cable from transaxle.

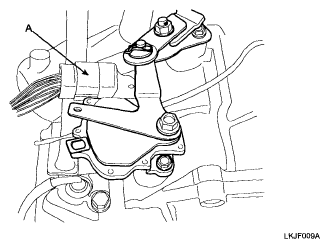

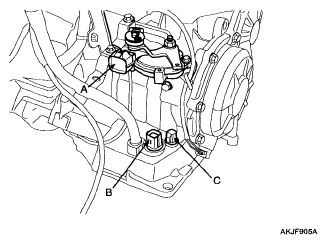

1. Disconnect the transaxle range switch connector (A).

  Fig 6: Identifying Transaxle Range Switch Connector
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the solenoid valve connector (B).

  Fig 7: Identifying Solenoid Valve Connector
  Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the fluid temperature sensor connector (C).

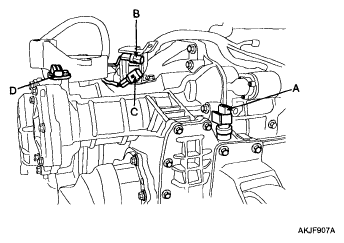

4. Disconnect the vehicle speed sensor connector (A).

  Fig 8: Identifying Vehicle Speed Sensor Connector
  Courtesy of KIA MOTORS AMERICA, INC.
5. Disconnect the band servo switch connector (B).
6. Disconnect the pulse generator A connector (C).
7. Disconnect the pulse generator B connector (D).
8. Remove the control cable nut (A) from transaxle range switch.

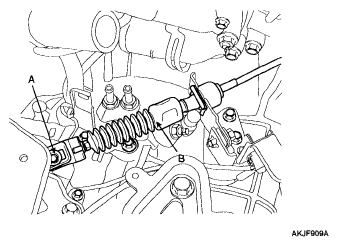

  Fig 9: Identifying Control Cable Nut And Control Cable
  Courtesy of KIA MOTORS AMERICA, INC.
9. Remove the control cable (B).

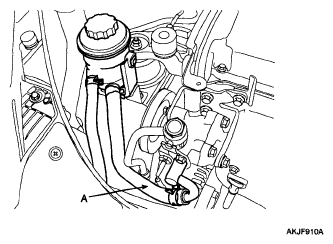

Remove the power steering oil hose (A) and drain the power steering oil.

Fig 10: Identifying Power Steering Oil Hose
Courtesy of KIA MOTORS AMERICA, INC.

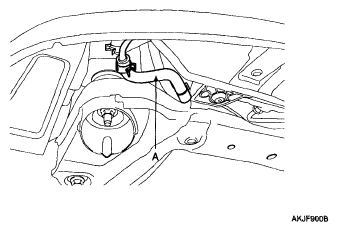

Remove the power steering return hose (A).

Fig 11: Identifying Power Steering Return Hose
Courtesy of KIA MOTORS AMERICA, INC.

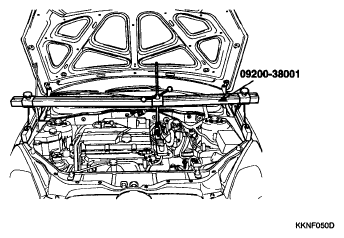

Install the special tools (09200-38001), the engine support fixture and the adapter, on the engine assembly.

Fig 12: Identifying SST (09200-38001)
Courtesy of KIA MOTORS AMERICA, INC.

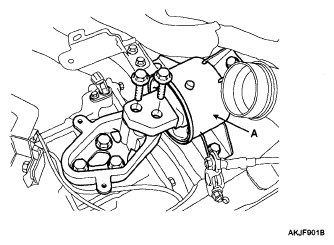

Remove the transaxle mounting support bracket (A).
TORQUE:

70-95 N.m (700-950 kgf.cm, 50-69 lb-ft)

Fig 13: Identifying Transaxle Mounting Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.

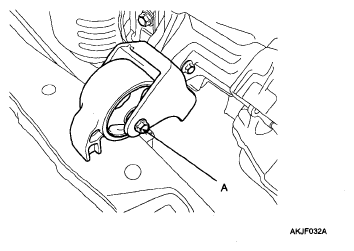

Remove the front roll stopper mounting bolt (A).
TORQUE:

50-65 N.m (500-650 kgf.cm, 36-47 lb-ft)

Fig 14: Identifying Front Roll Stopper Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear roll stopper mounting bolt (A).
TORQUE:

50-65 N.m (500-650 kgf.cm, 36-47 lb-ft)

Fig 15: Identifying Rear Roll Stopper Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

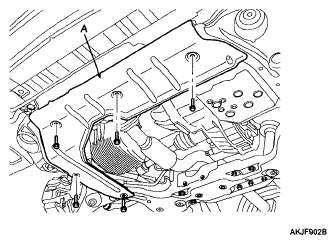

Remove the under cover (A).

Fig 16: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the side cover.
Remove the front wheel.

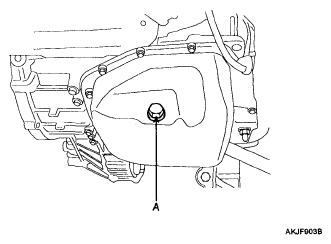

Remove the drain plug (A) and drain the automatic transaxle fluid.
TORQUE:

35-45 N.m (350-450 kgf.cm, 25-32 lb-ft)

Fig 17: Identifying Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.
Separate the tie rod end (A) from the pin (B) and nut (C).

Fig 18: Separating Tie Rod End From Pin And Nut
Courtesy of KIA MOTORS AMERICA, INC.

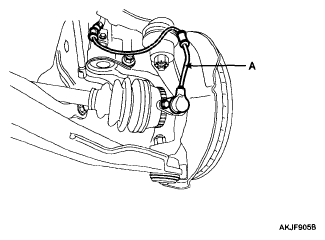

Remove the ABS wheel speed sensor (A).

Fig 19: Identifying ABS Wheel Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.

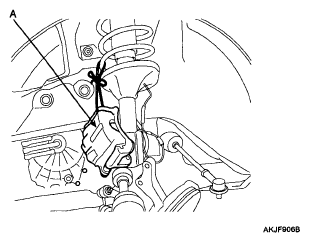

Remove the front caliper (A) and use a wire to secure the caliper to the vehicle so that it is out of the way.

Fig 20: Identifying Front Caliper
Courtesy of KIA MOTORS AMERICA, INC.

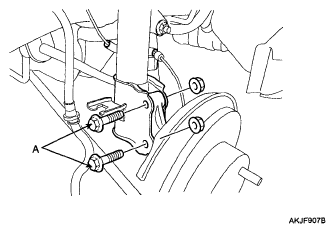

Remove the knuckle mounting bolts (A).

Fig 21: Identifying Knuckle Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft (A) from the transaxle.

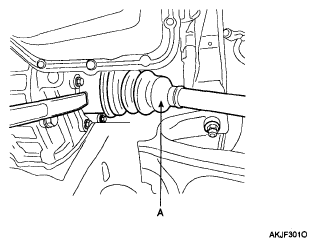

Fig 22: Identifying Drive Shaft
Courtesy of KIA MOTORS AMERICA, INC.

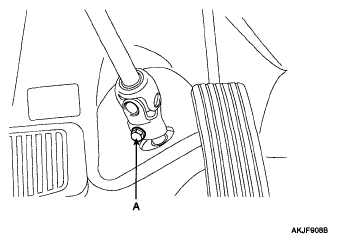

Remove the steering U-joint mounting bolt (A).

Fig 23: Identifying Steering U-Joint Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

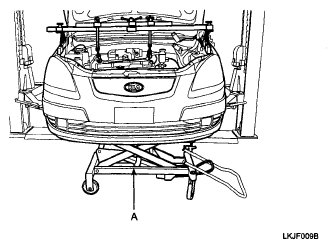

Install the jack (A) for supporting transaxle.
NOTE: When supporting the transaxle assembly, make sure that the weight is applied to a wide area of the jack surface.

Fig 24: Supporting Transaxle Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the sub-frame bolt (A) and nut (B).
TORQUE:

Bolts (A): 40-50 N.m (400-550 Kgf.cm, 29-40 lb-ft)

Nuts (B): 160-180 N.m (1600-1800 Kgf.cm, 110-126 lb-ft)

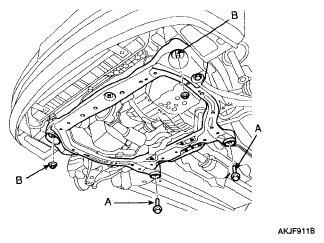

Fig 25: Identifying Sub Frame Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the start motor mounting bolt (A).
TORQUE:

27-34 N.m (270-340 kgf.cm, 19-24 lb-ft)

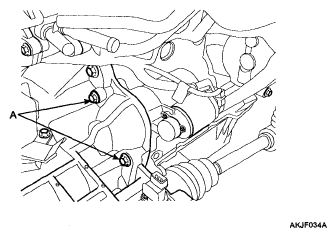

Fig 26: Identifying Start Motor Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

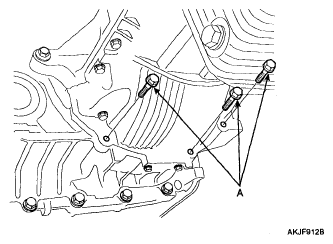

Remove the engine to the torque converter mounting bolts (A). (4EA).
TORQUE:

46-53 N.m (460-530 kgf.cm, 33-38 lb-ft)

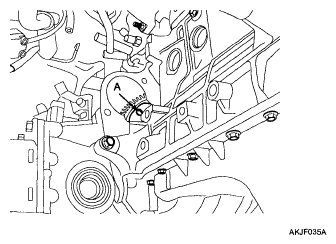

Fig 27: Identifying Torque Converter Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine to automatic transaxle mounting bolts (A).
TORQUE:

Bolts (12 mm): 60-80 N.m (600-800 Kgf.cm, 43-58 lb-ft)

Bolts (10 mm): 43-55 N.m (430-550 Kgf.cm, 32-41 lb-ft)

Fig 28: Identifying Automatic Transaxle Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle assembly.
CAUTION: Be careful not damage the other parts during removal.

Fig 29: Identifying Transaxle Assembly
Courtesy of KIA MOTORS AMERICA, INC.
