Mechanical System: Components

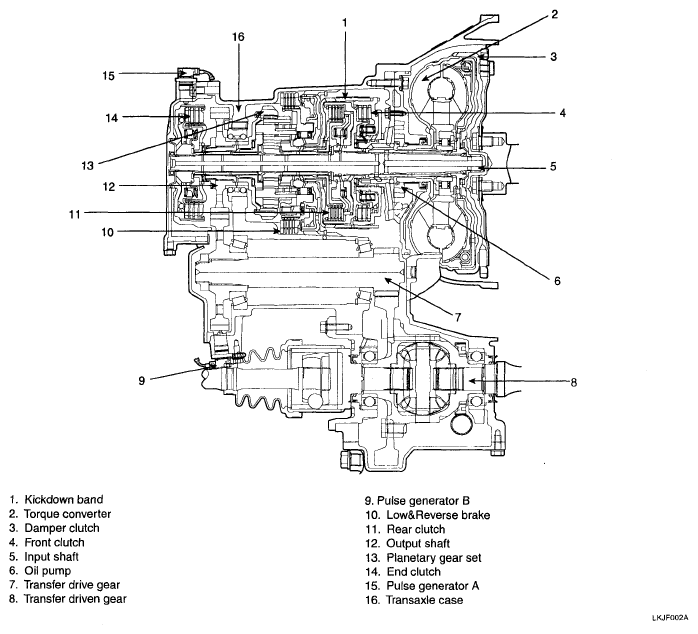

Fig 1: Cutaway View Of Transaxle

G04862487

Courtesy of KIA MOTORS AMERICA, INC.
