Automatic Transaxle Hydraulic Circuit: Lock

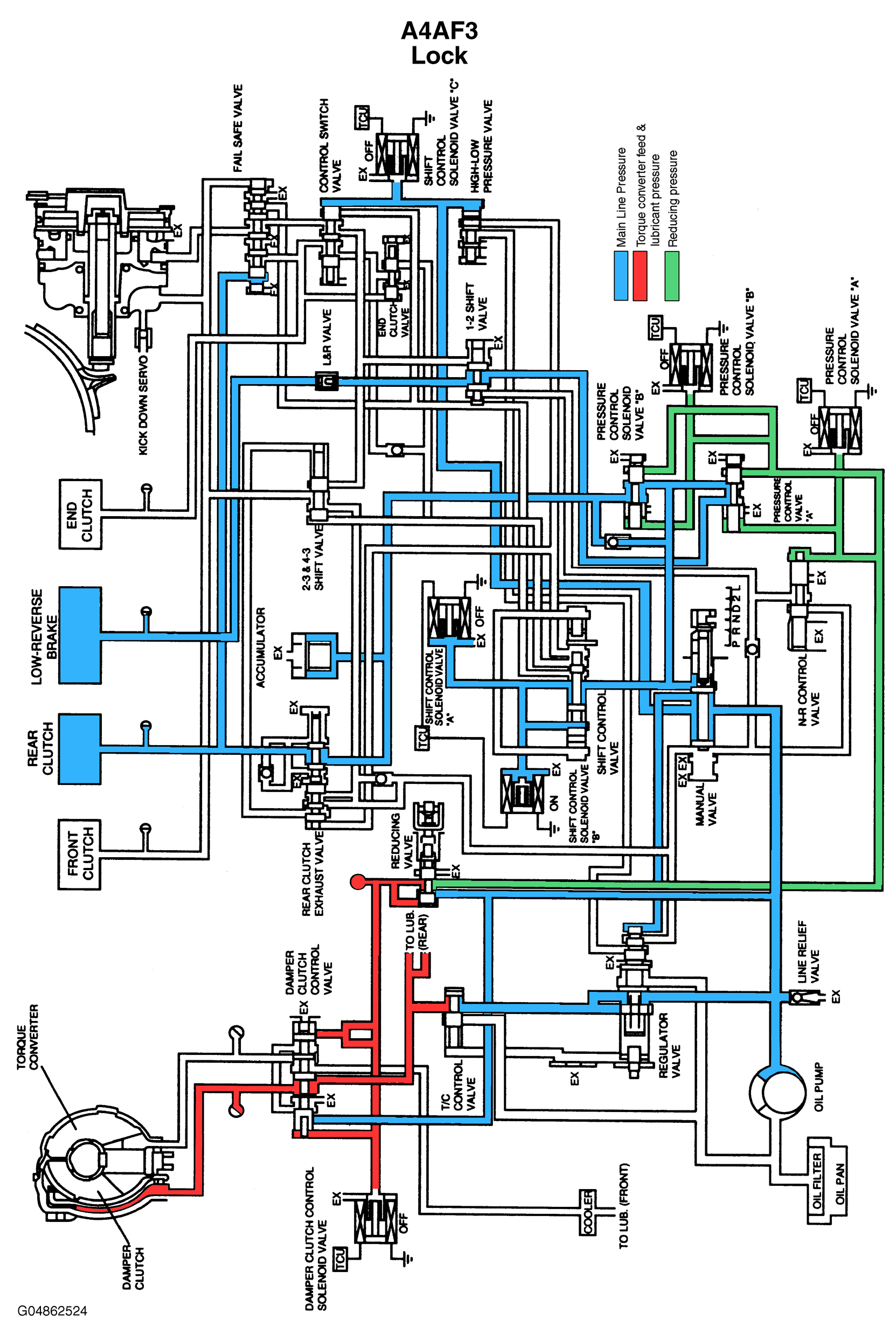

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Lock
G04862524Courtesy of KIA MOTORS AMERICA, INC.
