Automatic Transaxle Hydraulic Circuit: Reverse

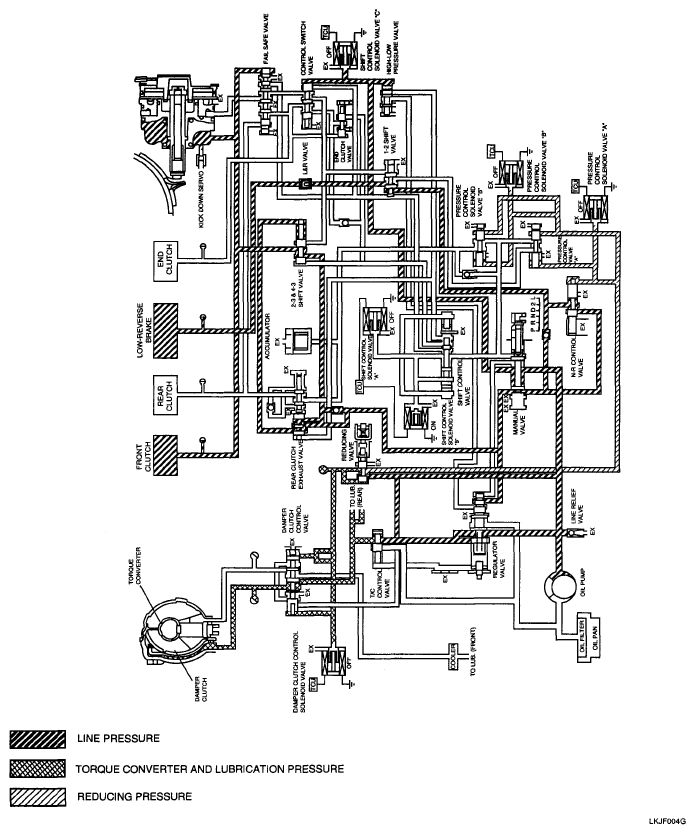

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Reverse
G04862525Courtesy of KIA MOTORS AMERICA, INC.
