Fail Safe Function

TCM malfunction in 1st or 2nd gear.

CUTTING OFF THE E/C PRESSURE BY E/C VALVE

SPEED REFERENCE CHART

Speed	F/C	R/C	K/D
1st		◦
2nd		◦	◦
Fail	◦	◦

F/C, SR: from 2-3/4-3 shift valve
R/C: from PCV-B
SA: from 1-2 shift valve

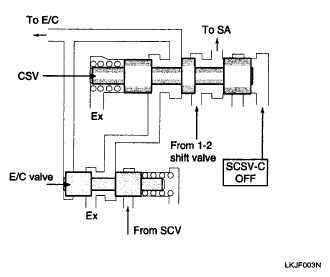

Fig 1: Gear Shift Operation Diagram - TCM Malfunction In 1st Or 2nd Gear
Courtesy of KIA MOTORS AMERICA, INC.

TCM malfunction in 1st or 2nd gear.

If the hydraulic pressure is supplied to E/C and the F/C, SR pressure is delayed.

SPEED REFERENCE CHART

Speed	R/C	K/D
1st	◦
2nd	◦	◦
Fail	◦	◦

R/C, E/C, S/A: interlock

Fig 2: Gear Shift Operation Diagram - TCM Malfunction In 1st Or 2nd Gear
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:
