Signal Circuit Inspection

Ignition "OFF".
Disconnect "TRANSAXLE RANGE SWITCH" and "PCM" connector.
Measure resistance between each terminals of the sensor harness to check for Short.
Specification: Infinite

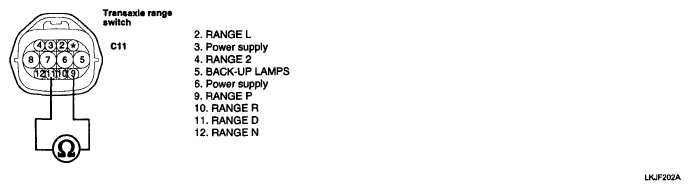

Fig 1: Measuring Resistance Between Terminals Of Sensor Harness To Check For Short
Courtesy of KIA MOTORS AMERICA, INC.
Is resistance within specifications?
YES : --> Go to "COMPONENT INSPECTION " procedure.

NO : --> Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
