Monitor Scan Tool Data

Connect scan tool to data link connector (DLC).
Engine "ON".
Monitor the "PCSV-A" parameter on the scan tool.
Select "N --> D RANGE".
Check "PCSV-A" parameter value changes while driving.

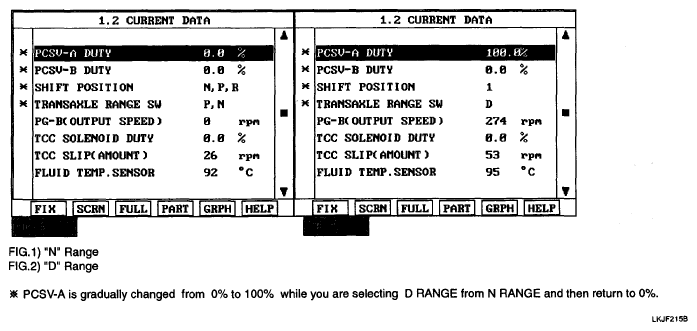

Fig 1: Scan Tool Data - Screen Display
Courtesy of KIA MOTORS AMERICA, INC.
Does "PCSV-A DUTY" follow the reference data?
YES : --> Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO : --> Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
