Kick Down Switch: Adjustment
- Completely remove all dirt and other contaminating materials adhered around the kickdown adjust screw.
- Loosen the lock nut.

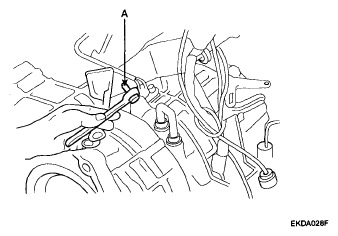

- Loosen and tighten the adjust screw (A) two times by torque of 5 N.m (50 kg.cm, 4 lb.ft).
- Tighten adjust screw by torque of 5 N.m and then, loosen the adjust screw 3 to 3-1/3 turns.
- Tighten the lock nut to the specified torque.
Lock nut: 15-22 N.m (150-220 kgf.cm, 11-15 lb-ft)
NOTE: Before assembling, apply sealant (DC780) to the center portion of the adjust screw.
