Shift Lever: Removal

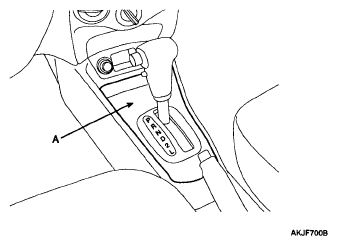

Remove the center console cover (A).

Fig 1: Identifying Center Console Cover
Courtesy of KIA MOTORS AMERICA, INC.

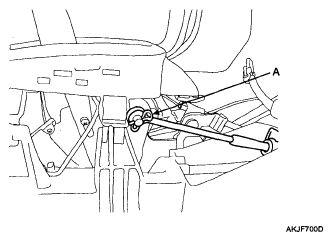

Remove the center console mounting bolt (A) and screw (4EA) and remove the center console. Refer to INTERIOR .

Fig 2: Identifying Center Console Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

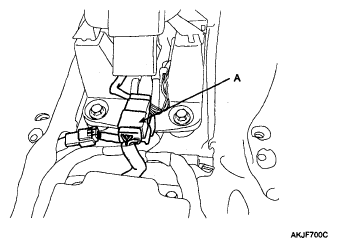

Disconnect lever assembly electrical connector (A).

Fig 3: Identifying Lever Assembly Electrical Connector
Courtesy of KIA MOTORS AMERICA, INC.

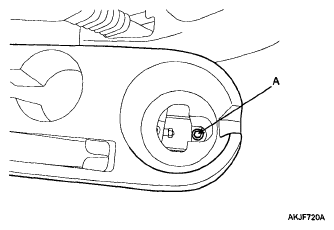

Remove the control cable cotter pin (A).

Fig 4: Identifying Control Cable Cotter Pin
Courtesy of KIA MOTORS AMERICA, INC.
Remove control cable hold (lever side).
Remove the shift lock cable P-LOCK cam (A).
Remove the shift lock cable mounting nut (B) (Nut: 1EA).

Fig 5: Identifying Shift Lock Cable Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

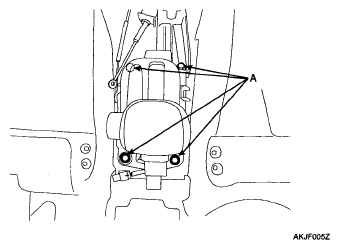

Remove the shift lever bolt (A) (Bolt: 4EA).

Fig 6: Identifying Shift Lever Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lever assembly.

Fig 7: Identifying Shift Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
