Circuit Diagram: BCM

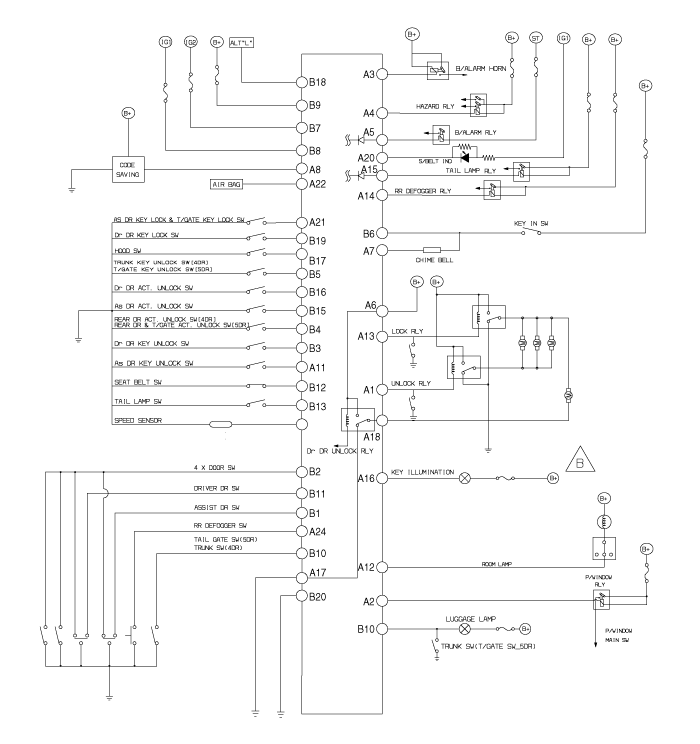

Fig 1: BCM Circuit Diagram
G00488458Courtesy of KIA MOTORS AMERICA, INC.

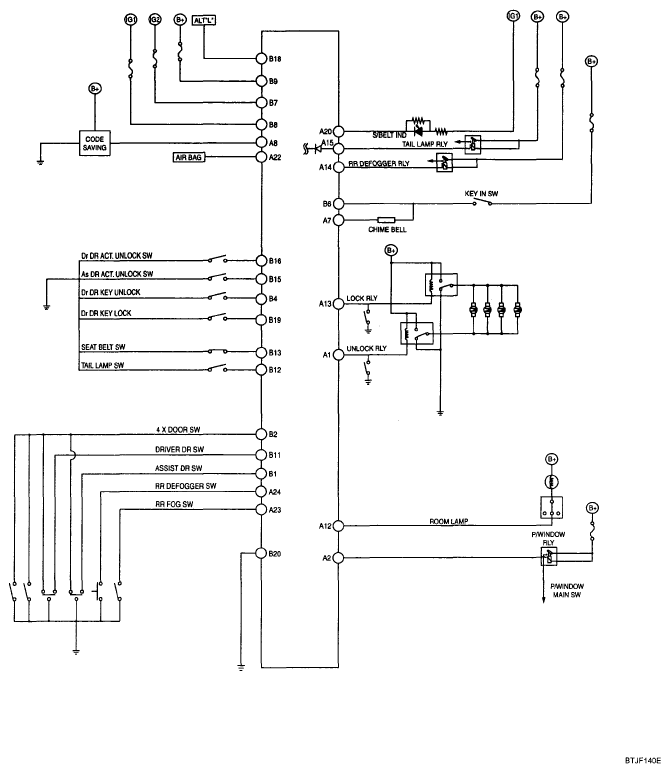

Fig 1: BCM Circuit Diagram
G04863579Courtesy of KIA MOTORS AMERICA, INC.
