Heater Control Unit Replacement








REPLACEMENT

HEATER CONTROL UNIT REPLACEMENT
1. Remove the center facia panel.

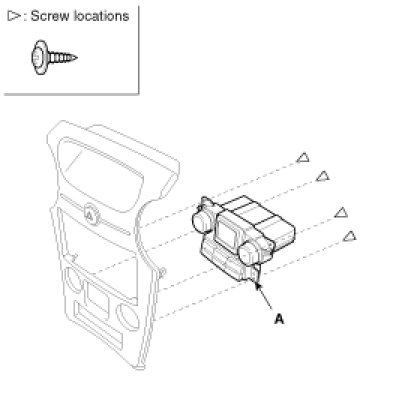

2. After loosening the heater control mounting screws,remove the heater control unit (A).




3. Installation is the reverse of removal.

NOTE:
Make sure the connector is plugged in properly.
