Fuel System
Specifications
Sensors
Accelerator Position Sensor (APS)
- Type: Variable resistor type

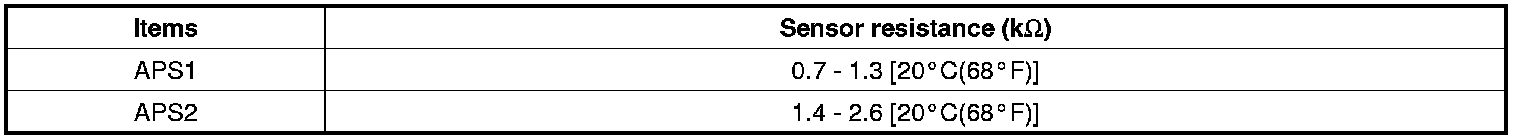

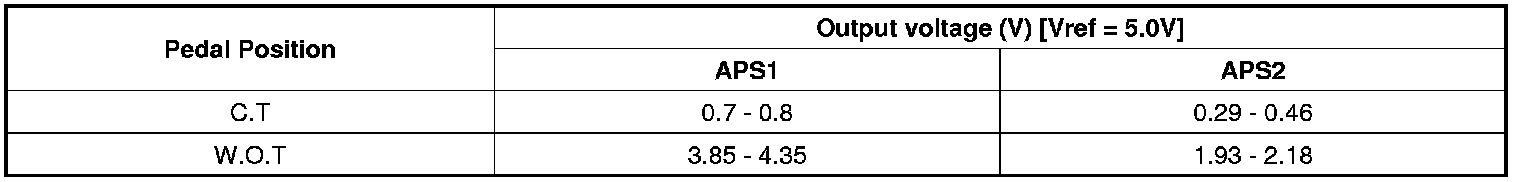

- Specification
