Symptom Related Diagnostic Procedures





Basic Troubleshooting

Symptom Troubleshooting Guide Chart

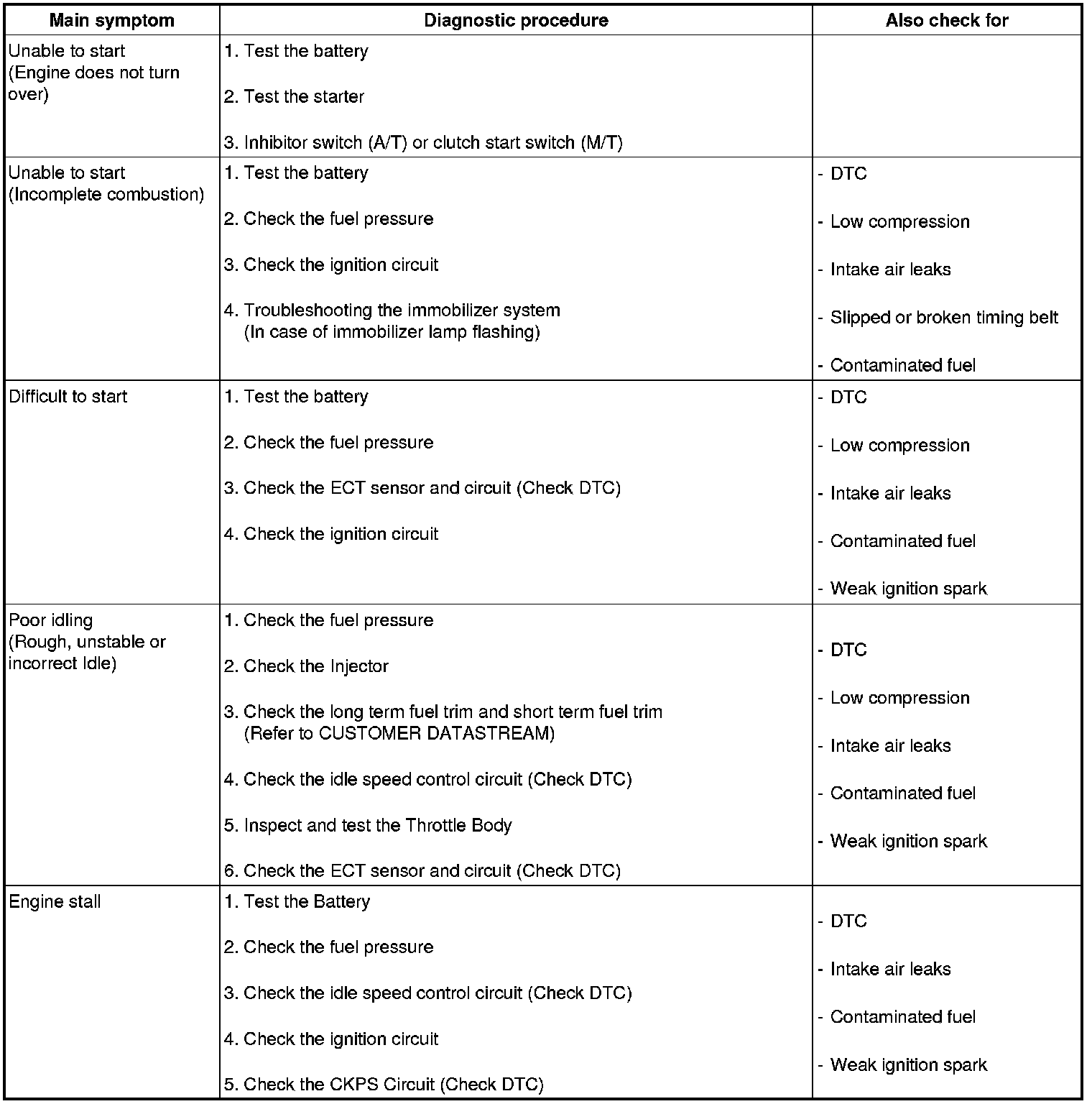

Symptom Troubleshooting Guide Chart (Part 1):

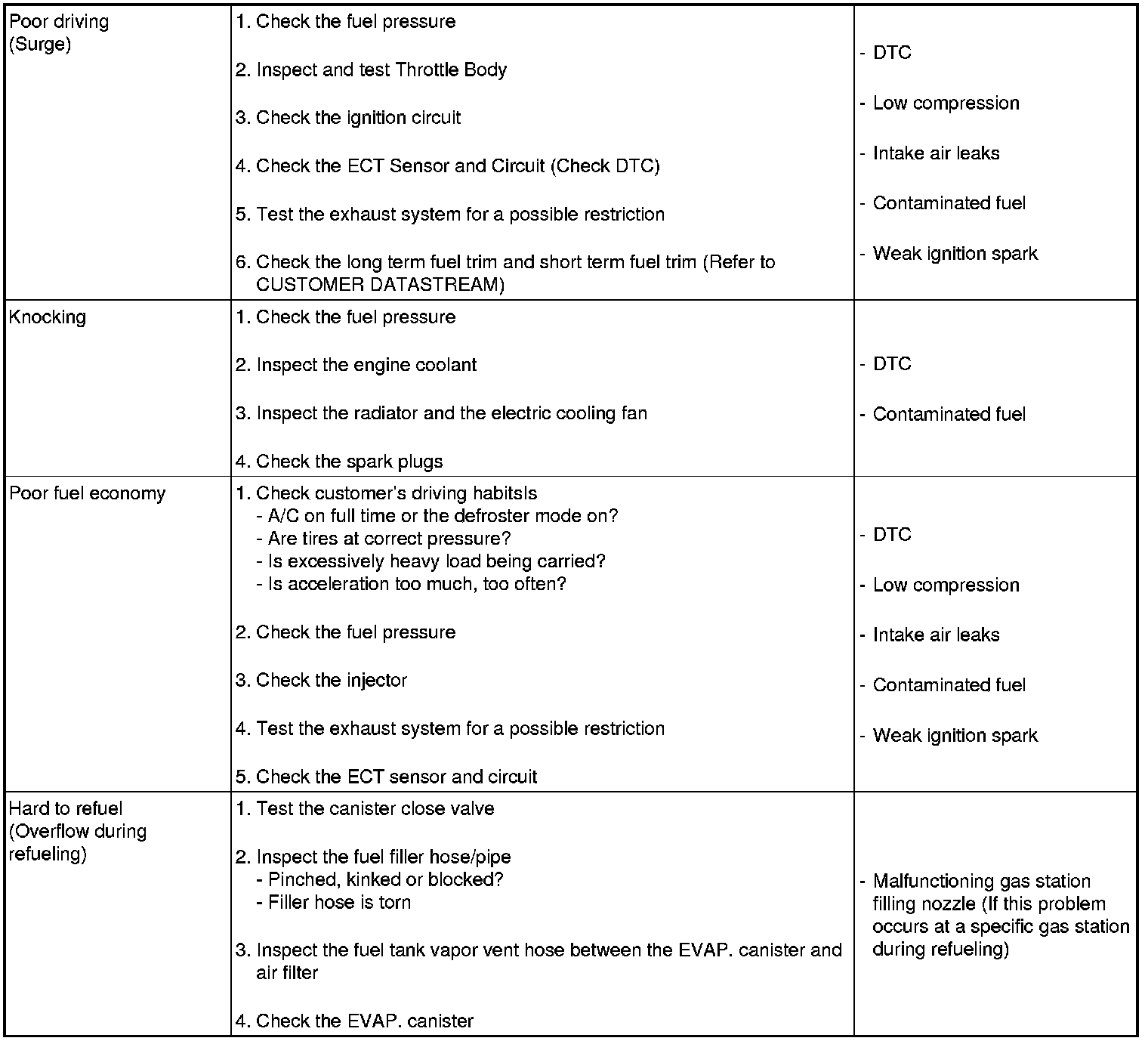

Symptom Troubleshooting Guide Chart (Part 2):
