Quarter Glass Motor

  1. Remove (-) negative battery terminal.

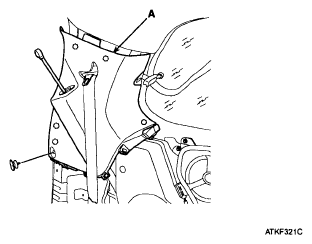

  2. Remove the D pillar trim panel (A). Refer to INTERIOR TRIM .
    Fig 1: Identifying D Pillar Trim Panel
    G04885065Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the quarter glass motor (B) after disconnecting the motor connector (A) and quarter glass motor mounting bolts and screws.
    Fig 2: Identifying Quarter Glass Motor And Connector
    G04885066Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
