Sliding Power Window Motor

  1. Remove (-) negative battery terminal.
  2. Remove the sliding door trim panel. Refer to REAR DOOR .
  3. Remove the door trim seal and glass.
  4. Remove the door regulator.
  5. Remove the power window motor (A) after disconnecting the motor connector and power window motor mounting nuts.

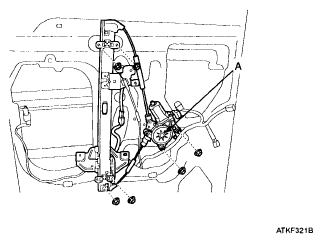

    Fig 1: Identifying Power Window Motor And Mounting Nuts
    G04885064Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse of removal.
