Sliding Power Window Switch

  1. Remove (-) negative battery terminal.
  2. Disconnect the connector (B) after removing the sliding power window switch (A) from the B pillar trim (C).

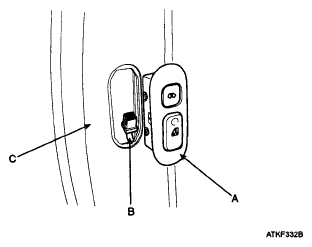

    Fig 1: Identifying Sliding Power Window Switch, Connector And B Pillar Trim
    G04885072Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
