Air Flow Meter/Sensor
SPECIFICATIONS
INPUT SENSORS
MASS AIR FLOW SENSOR (MAFS)
> Type: Hot film type

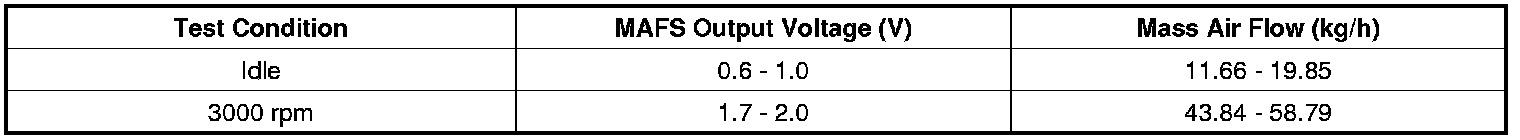

> Specification
