Oxygen Sensor





SPECIFICATIONS

INPUT SENSORS

HEATED OXYGEN SENSOR (HO2S)
> Type: Zirconia Sensor
- Front HO2S: Linear Type
- Rear HO2S: Binary Type

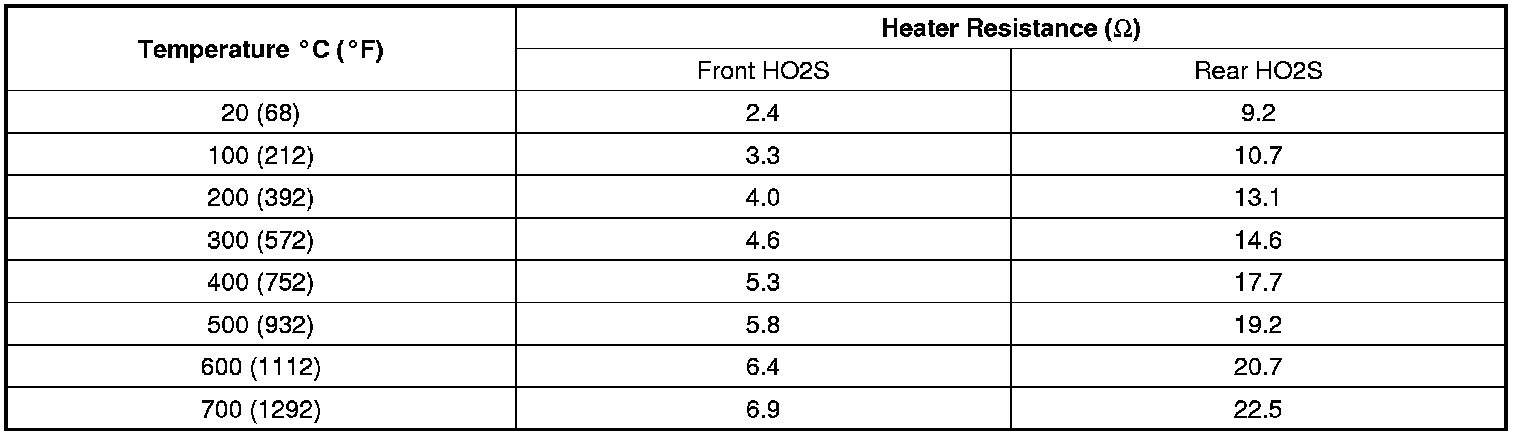

> Specification
